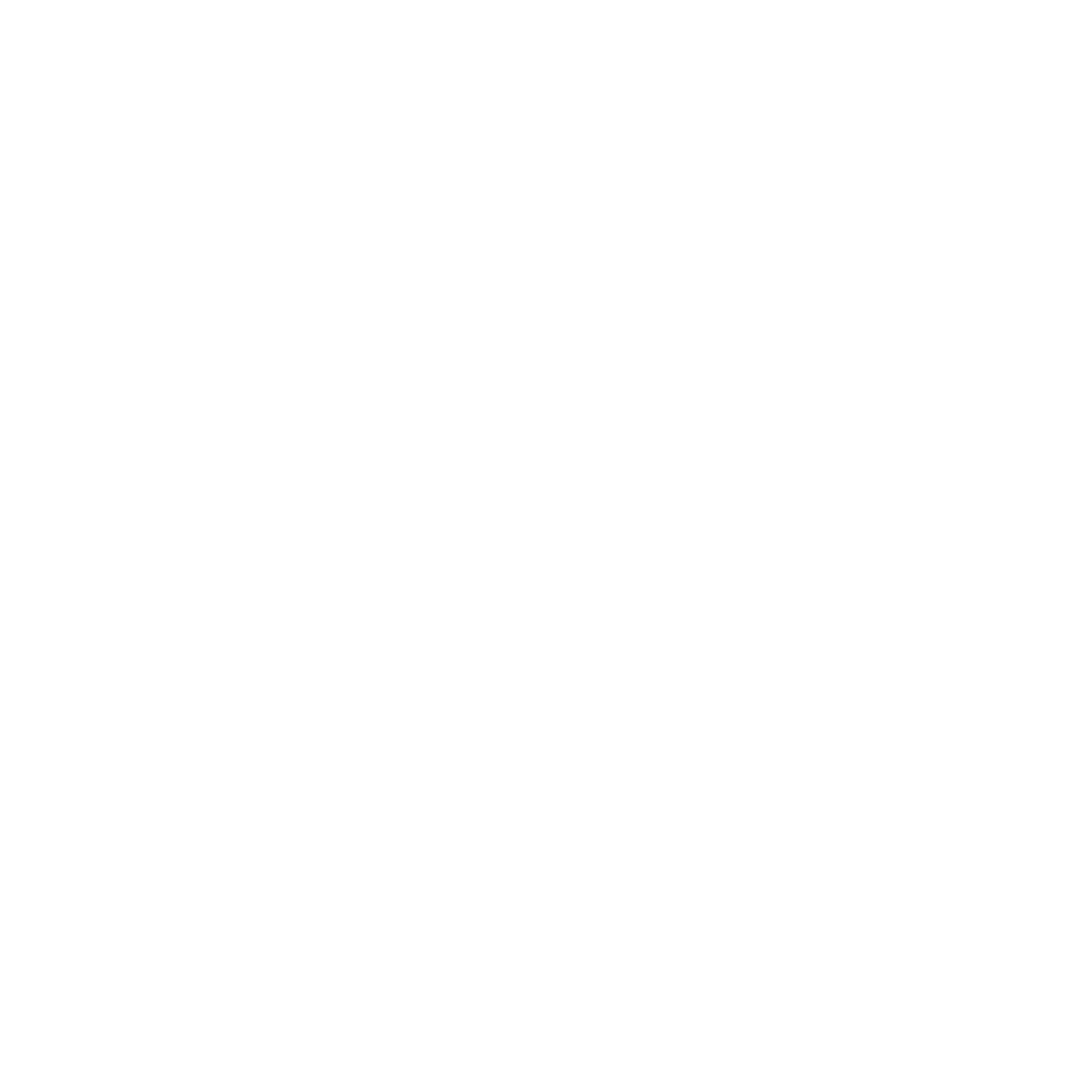

4''/6'' Concentric Roof Termination PPs-UV

Article number: ICRT4679

InnoFlue Concentric Roof Terminations offer a streamlined and effective way to manage exhaust and terminate through roof quickly and easily. Rated to 230°F (110°C), InnoFlue Concentric Terminations integrate combustion air intake and UL listed polypropylene exhaust vent into a single system reducing labor and construction at the jobsite. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Concentric Roof Terminations are a favorite of professional installers.

  • Neatly terminates combustion air intake and exhaust in single penetration.
  • Reduces time and labor at jobsite.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
  • Rated to 230°F (110°C).
View all specifications

All media

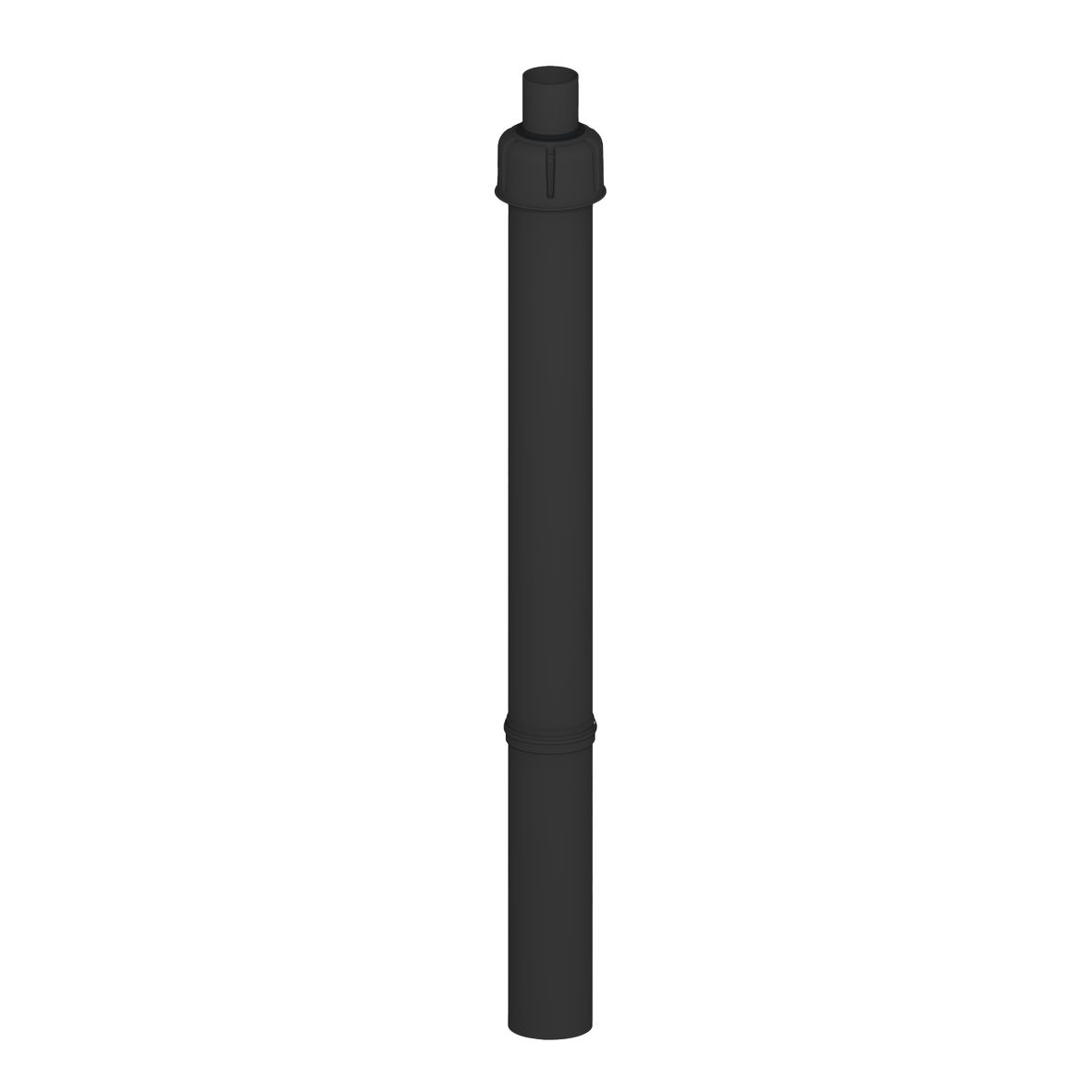

4''/6'' Concentric Roof Termination PPs-UV Black

Specifications

General

Product Name
4''/6'' Concentric Roof Termination PPs-UV
Accessories in package
Clamp
Part number
250407400400
GTIN
0815010011225
Trade name
InnoFlue

Technical

Color
Black
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
HDPE

Dimensions

Length gross
1988 mm / 78.3 inch
Height underroof
600 mm / 23.6 inch
Height
220 mm / 8.7 inch
Diameter air inlet pipe
166 mm / 6 inch
Height overroof
1389 mm / 54.7 inch
Width
220 mm / 8.7 inch
Net weight
6.827 kg / 15.1 lbs
Diameter flue pipe
110 mm / 4 inch

Logistical

Intrastat
3917210000
Base unit packaging
Unpacked
Packaging / Trade length
1988 mm / 78.3 inch
Packaging / Trade height
220 mm / 8.7 inch
Number per packaging
1
Gross weight
6.827 kg / 15.1 lbs
Packaging / Trade width
220 mm / 8.7 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
