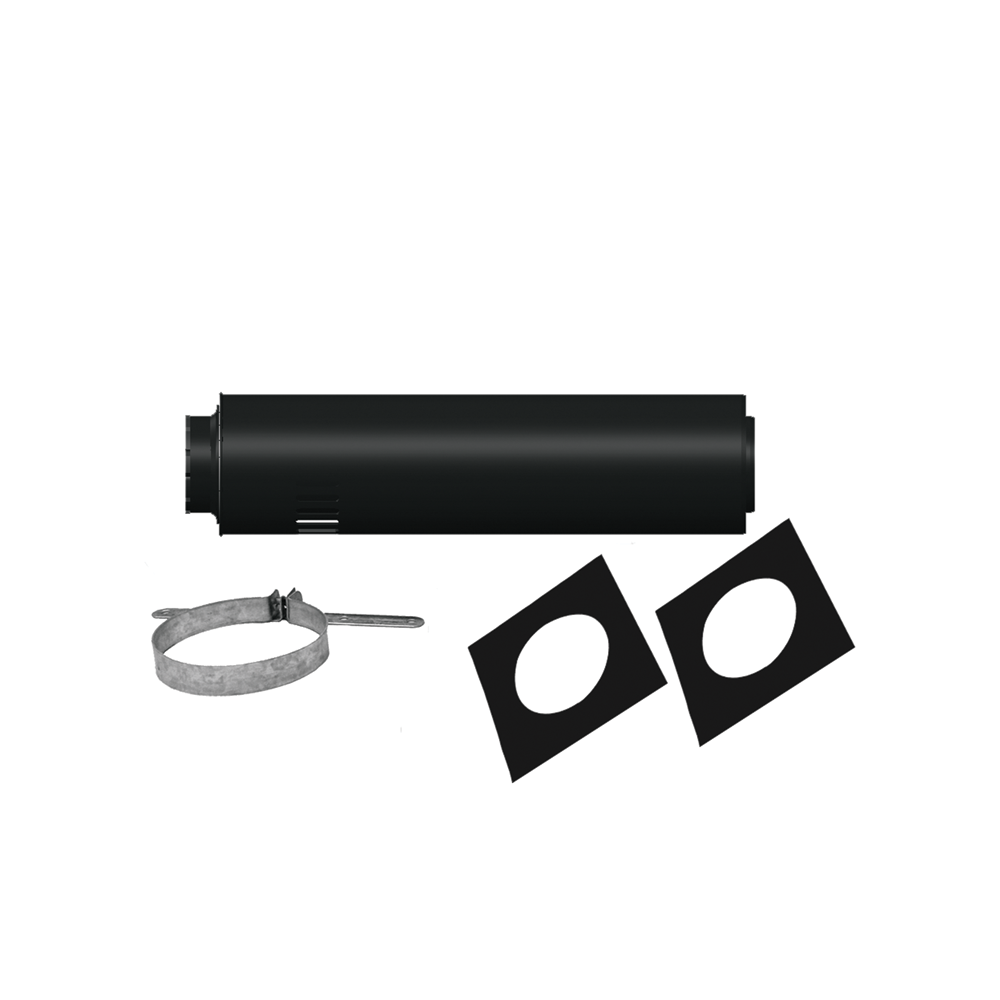

4"/6" Concentric Wall Termination PPs-UV Kit

Article number: ICWT462

InnoFlue Concentric Wall Terminations offer a streamlined and effective way to manage exhaust and terminate through the sidewall quickly and easily. Rated to 230°F (110°C), InnoFlue Concentric Terminations integrate combustion air intake and UL listed polypropylene exhaust vent into a single system reducing labor and construction at the jobsite. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Concentric Wall Terminations are a favorite of professional installers.

  • Neatly terminates combustion air intake and exhaust in single penetration.
  • Reduces time and labor at jobsite.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
  • Rated to 230°F (110°C).
View all specifications

All media

ICWT_4

Specifications

General

Product Name
4"/6" Concentric Wall Termination PPs-UV Kit
Accessories in package
Inner plate / Outer plate / Clamp
Part number
250411400460
GTIN
0810017294398
Trade name
InnoFlue

Technical

Color
Black
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
HDPE

Dimensions

Diameter air inlet pipe
166 mm / 6 inch
Diameter flue pipe
110 mm / 4 inch

Logistical

Intrastat
3917220000
Base unit packaging
Box
Packaging / Trade length
249 mm / 9.8 inch
Packaging / Trade height
1056 mm / 41.6 inch
Number per packaging
1
Gross weight
2.757 kg / 6.1 lbs
Packaging / Trade width
245 mm / 9.6 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
