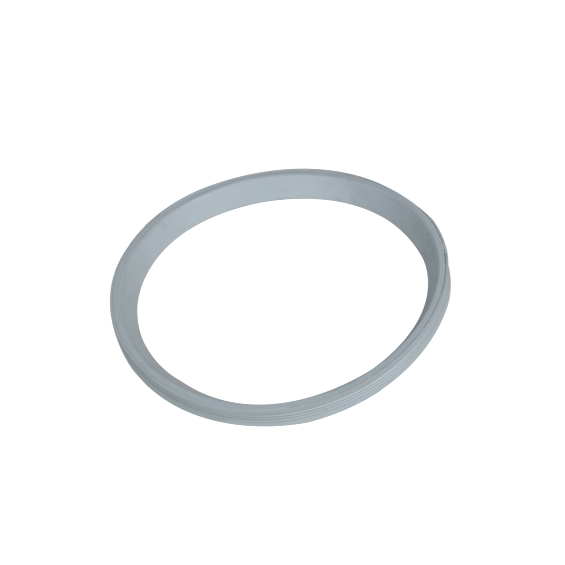

10" EPDM Gasket

Article number: ISGE10

InnoFlue EPDM gaskets ensure secure and leak-free connections throughout the exhaust system. Situated in every InnoFlue hub, EPDM gaskets are evaluated to UL1738 and ULCS636 by ICC and are temperature rated for venting applications up to 230°F (110°C). The EPDM gasket is the crucial component helping form an airtight seal without the need for glues, primers, or solvents.

  • Ensures secure, leak-free seals at each fitting.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
  • Rated to 230°F (110°C).
View all specifications

All media

ISGE

Specifications

General

Product Name
10" EPDM Gasket
Trade name
InnoFlue
GTIN
0815010013298
Part number
250000000241

Technical

Color
Gray
Material
EPDM

Dimensions

Length gross
268 mm / 10.6 inch
Height
12 mm / 0.5 inch
Width
268 mm / 10.6 inch
Net weight
0.074 kg / 0.2 lbs

Logistical

Intrastat
4016935050
Base unit packaging
Unpacked
Packaging / Trade length
268 mm / 10.6 inch
Packaging / Trade height
12 mm / 0.5 inch
Number per packaging
1
Gross weight
0.074 kg / 0.2 lbs
Packaging / Trade width
268 mm / 10.6 inch

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
