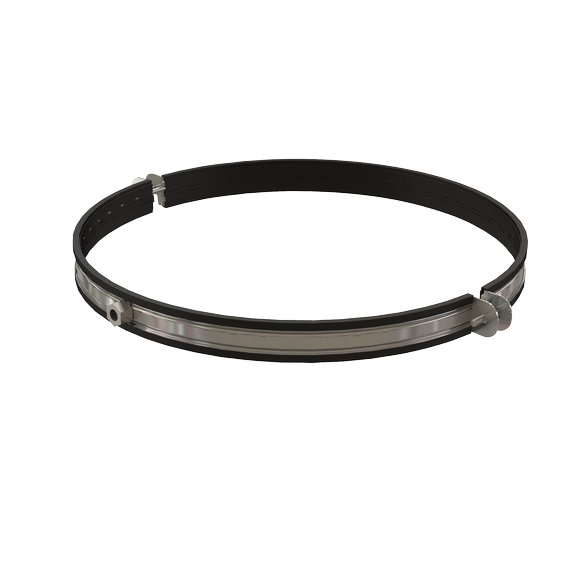

12" Support Clamp with 3/8" Nut

Article number: IASCM12

InnoFlue Support Clamps provide a sleek, user-friendly option to support the exhaust system. The engineered metal clamp is designed to withstand & support the vent system while installing quickly and easily. The metal interior is coated with a rubber exterior to prevent any scratching of the venting components. InnoFlue Support Clamps can be used as vertical or horizontal support. Space 78" in vertical and 39" in horizontal installations. Integrated installation system uses 3/8th" threaded rod.

  • Accepts standard 3/8th" threaded rod.
  • Metal interior and rubber exterior support and protect pipe.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
View all specifications

All media

12" Support Clamp with 3/8" Nut

Specifications

General

Product Name
12" Support Clamp with 3/8" Nut
Trade name
InnoFlue
GTIN
0815010016206
Part number
250410703570

Technical

Color
Silver
Material
Steel

Dimensions

Length gross
363 mm / 14.3 inch
Height
27 mm / 1.1 inch
Width
330 mm / 13 inch
Net weight
0.325 kg / 0.7 lbs

Logistical

Intrastat
7326908630
Base unit packaging
Unpacked
Packaging / Trade length
363 mm / 14.3 inch
Packaging / Trade height
27 mm / 1.1 inch
Number per packaging
1
Gross weight
0.325 kg / 0.7 lbs
Packaging / Trade width
330 mm / 13 inch

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
