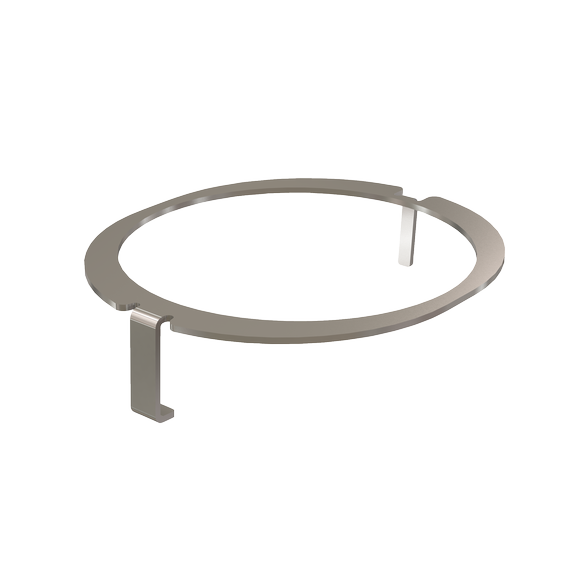

4'' Connector Ring

4'' Connector Ring

Article number: IANS04

4'' Connector Ring
4'' Connector Ring

InnoFlue Connector Rings seamlessly integrate with Centrotherm components, ensuring a joint fitting that prevents leaks and maintains airtight exhaust flow. Required in 2", 3" and 4" diameters by UL, InnoFlue Connector Rings are evaluated to the mechanical standard to meet/exceed all relevant tests. Made of galvanized metal, InnoFlue Connector Rings utilize a cantilever system to provide additional support at each fitting connect. InnoFlue Connector Rings are recommended in all diameter applications.

  • Durable metal material adds additional stability to each fitting connection.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Cantilever system helps fitting to exceed relevant mechanical tests.
  • Lightweight and durable.
  • Recommended in all diameter applications.
View all specifications

Specifications

Product Name
4'' Connector Ring
Trade name
InnoFlue
GTIN
0815010010655
Part number
250410203770

Color
Silver
Material
Galvanized steel

Length gross
135 mm / 5.3 inch
Height
32.6 mm / 1.3 inch
Diameter flue pipe
110 mm / 4 inch
Width
120.5 mm / 4.7 inch
Net weight
0.036 kg / 0.1 lbs

Intrastat
7326908588
Base unit packaging
Unpacked
Packaging / Trade length
135 mm / 5.3 inch
Packaging / Trade height
32.6 mm / 1.3 inch
Number per packaging
1
Gross weight
0.036 kg / 0.1 lbs
Packaging / Trade width
120.5 mm / 4.7 inch

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
