4in Horizontal Hanger

Article number: IASH04

InnoFlue Horizontal Support Clamps provide a sleek, user-friendly option to support the exhaust system in horizontal orientations. The engineered metal clamp is designed to withstand & support the vent system while installing quickly and easily. InnoFlue Horizontal Support Clamps can only be used for horizontal support. Space 39" in horizontal installations. Mount with standard hardware.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
View all specifications

All media

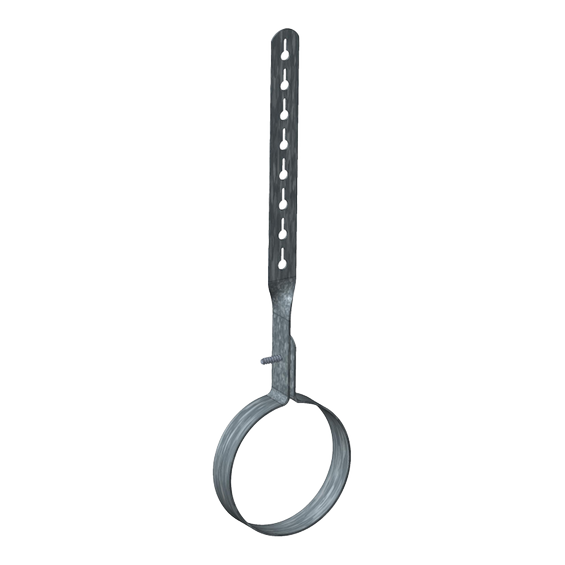

InnoFlue Hanger 4800x4800 Metal

Specifications

General

Product Name
4in Horizontal Hanger
Part number
250410208270
GTIN
0810017294015

Technical

Material
Galvanized

Dimensions

Length gross
110 mm / 4.3 inch
Height
431.8 mm / 17 inch
Width
25.4 mm / 1 inch

Logistical

Intrastat
7326908630
Gross weight
0.263 kg / 0.6 lbs
Packaging / Trade width
25.4 mm / 1 inch
Base unit packaging
Unpacked
Packaging / Trade length
110 mm / 4.3 inch
Packaging / Trade height
431.8 mm / 17 inch

Performance

Temperature resistance (max.)
120 °C
