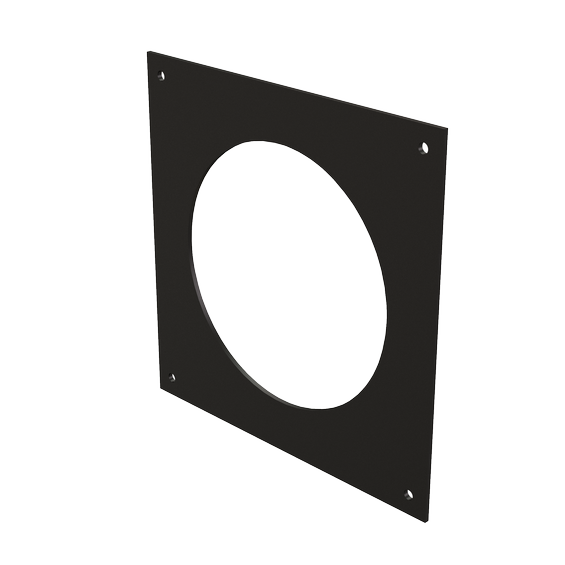

6" Wall Plate Black Plastic DN160

Article number: IAWP06BP

InnoFlue Wall Plates blend functionality and visual appeal to augment the the flue gas system. Engineered with a focus on design and durability, this wall plate not only serves its purpose but also adds a touch of style. InnoFlue Wall Plates install quickly and easily utilizing a design that simplifies mounting and positioning. Effortlessly conceal exhaust vents and provide a clean and unobtrusive appearance with InnoFlue Wall Plates.

  • Sleek appearance augments exhaust run.
  • Lightweight and durable.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

All media

6" Wall Plate DN160 Black Plastic

Specifications

General

Product Name
6" Wall Plate Black Plastic DN160
Trade name
InnoFlue
GTIN
0815010018552
Part number
250410403980

Technical

Color
Black
Material
PP

Dimensions

Length gross
229 mm / 9 inch
Height
3.2 mm / 0.1 inch
Diameter flue pipe
160 mm / 6 inch
Width
229 mm / 9 inch
Net weight
0.091 kg / 0.2 lbs

Logistical

Intrastat
7326908588
Base unit packaging
Unpacked
Packaging / Trade length
229 mm / 9 inch
Packaging / Trade height
3.2 mm / 0.1 inch
Number per packaging
1
Gross weight
0.091 kg / 0.2 lbs
Packaging / Trade width
229 mm / 9 inch

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
