12" (DN315) Flanged Adaptor for Damper.

Article number: ISVCA12

InnoFlue Flanged Appliance Adaptors are approved by the appliance manufacturer for use on specific makes/models of furnaces, water heaters, and boilers that require a flange at the flue collar. Consult the Centrotherm OEM manual to find specific Appliance Adaptor specified for use on the intended appliance. InnoFlue Appliance Adaptors have undergone rigorous testing and are engineered to adapt to InnoFlue at the boiler connection. Always follow appliance I&O manual.

  • Approved for use by trusted appliance manufacturers.
  • Integrated flange installs quickly and easily.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

All media

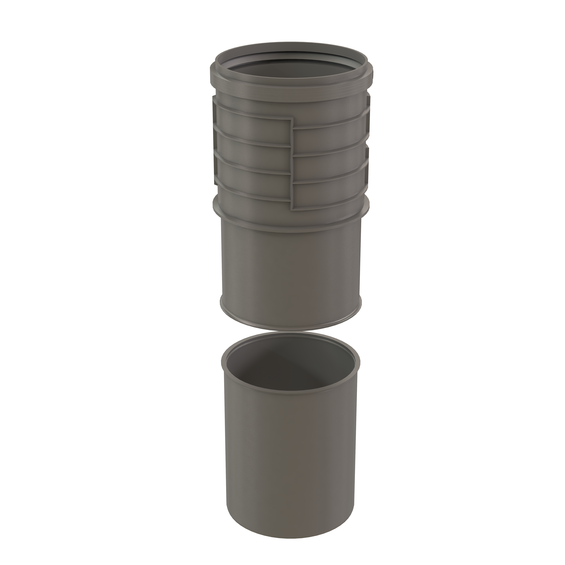

InnoFlue single wall flanged adaptor for damper 12" PPs grey

Specifications

General

Product Name
12" (DN315) Flanged Adaptor for Damper.
Trade name
InnoFlue
GTIN
0810017290024
Part number
250408700090

Technical

Color
Gray
Material flue pipe
PPs

Dimensions

Length gross
957.98 mm / 37.7 inch
Height
350.52 mm / 13.8 inch
Width
350.52 mm / 13.8 inch
Diameter flue pipe
315 mm / 12 inch

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade width
350.52 mm / 13.8 inch
Number per packaging
1
Packaging / Trade length
957.98 mm / 37.7 inch
Packaging / Trade height
350.52 mm / 13.8 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
