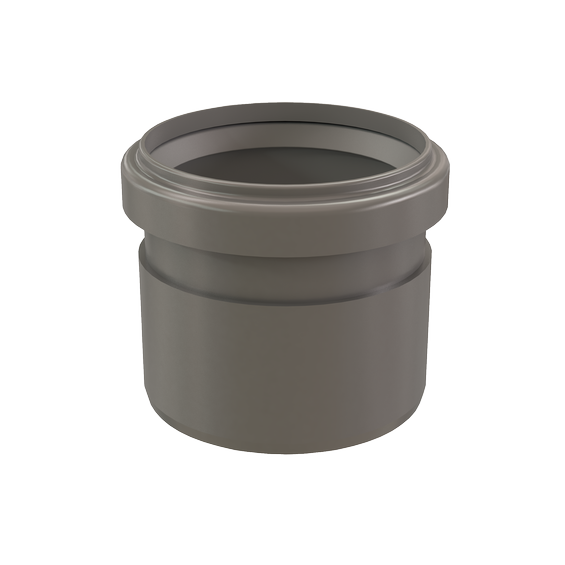

3" Appliance Adaptor PVC to PPs Long

Article number: ISAAL0303

InnoFlue PVC to PP Appliance Adaptors are approved by the appliance manufacturer for use on specific makes/models of furnaces, water heaters, and boilers that require an adaptor to transition from PVC flue collar to polypropylene vent system components. Consult the Centrotherm OEM manual to find specific Appliance Adaptor specified for use on the intended appliance. InnoFlue Appliance Adaptors have undergone rigorous testing and are engineered to adapt to InnoFlue at the boiler connection. Always follow appliance I&O manual.

  • Approved for use by trusted appliance manufacturers.
  • Seamlessly transitions from appliance to polypropylene at flue collar.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

All media

3" Appliance Adaptor PVC to PPs Long

Specifications

General

Product Name
3" Appliance Adaptor PVC to PPs Long
Trade name
InnoFlue
GTIN
0815010012567
Part number
250408100740

Technical

Color
Gray
Material
PPs
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
97 mm / 3.8 inch
Height
81 mm / 3.2 inch
Diameter flue pipe
80 mm / 3 inch
Width
97 mm / 3.8 inch
Net weight
0.088 kg / 0.2 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
97 mm / 3.8 inch
Packaging / Trade height
81 mm / 3.2 inch
Number per packaging
1
Gross weight
0.088 kg / 0.2 lbs
Packaging / Trade width
97 mm / 3.8 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
