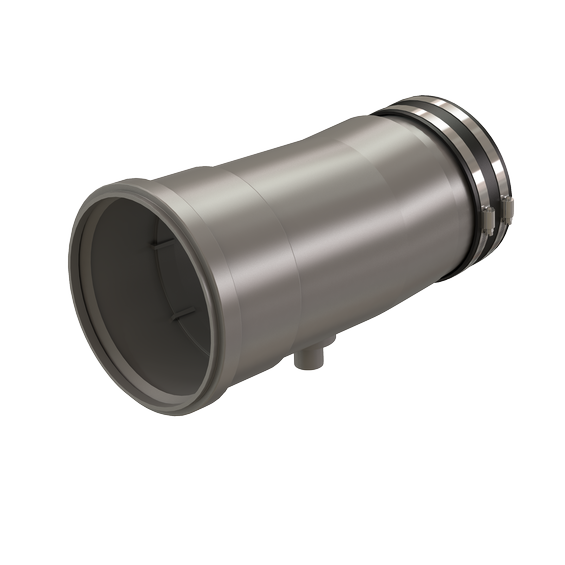

7" to 8" Appliance Adaptor w/Condensate Drain & VIB

Article number: ISAACD0708

InnoFlue Appliance Adaptors are approved by the appliance manufacturer for use on specific makes/models of furnaces, water heaters, and boilers that require a drain and a vibration isolation boot. Consult the Centrotherm OEM manual to find specific Appliance Adaptor specified for use on the intended appliance. InnoFlue Appliance Adaptors have undergone rigorous testing and are engineered to adapt to InnoFlue at the boiler connection. Always follow appliance I&O manual.

  • Approved for use by trusted appliance manufacturers.
  • Rated to 230°F (110°C).
  • Integrated drain and vibration isolation boot helps manage condensate and vibration.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

All media

7" to 8" Appliance Adaptor w/Condensate Drain & VIB

Specifications

General

Product Name
7" to 8" Appliance Adaptor w/Condensate Drain & VIB
Trade name
InnoFlue
GTIN
0815010013434
Part number
250408500670

Technical

Color
Gray
Material
PPs
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
243.84 mm / 9.6 inch
Height
419.1 mm / 16.5 inch
Width
199.64 mm / 7.9 inch
Diameter flue pipe
200 mm / 8 inch

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
243.84 mm / 9.6 inch
Packaging / Trade height
419.1 mm / 16.5 inch
Number per packaging
1
Gross weight
0.71 kg / 1.6 lbs
Packaging / Trade width
199.64 mm / 7.9 inch

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
