8" (200mm) Appliance Adaptor w/VIB

Article number: ISAAR0808

Custom InnoFlue Appliance Adaptors are approved by the appliance manufacturer for use on specific makes/models of furnaces, water heaters, and boilers. Consult the Centrotherm OEM manual to find specific Appliance Adaptor specified for use on the intended appliance. InnoFlue Appliance Adaptors have undergone rigorous testing and are engineered to adapt to InnoFlue at the boiler connection. Always follow appliance I&O manual.

  • Approved for use by trusted appliance manufacturers.
  • Rated to 230°F (110°C).
  • Integrates with vibration isolation boot to reduce vibration.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

All media

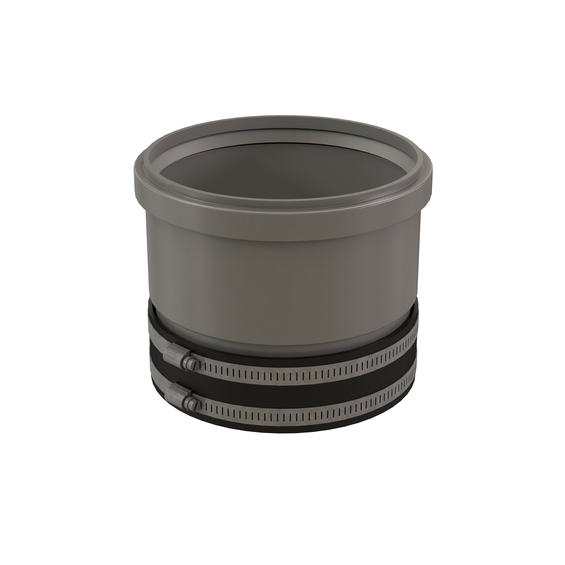

InnoFlue single wall appliance adaptor w/VIB 8" PPs grey

Specifications

General

Product Name
8" (200mm) Appliance Adaptor w/VIB
Trade name
InnoFlue
GTIN
0815010014080
Part number
250408504700

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
304.8 mm / 12 inch
Height
304.8 mm / 12 inch
Width
304.8 mm / 12 inch
Diameter flue pipe
200 mm / 8 inch

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade width
76.2 mm / 3 inch
Number per packaging
1
Packaging / Trade length
76.2 mm / 3 inch
Packaging / Trade height
76.2 mm / 3 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
