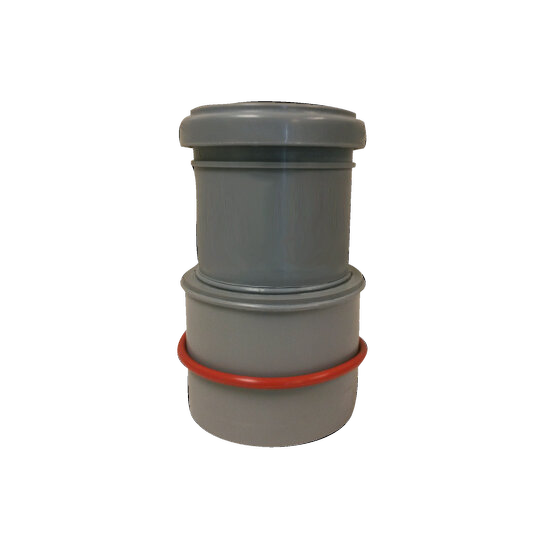

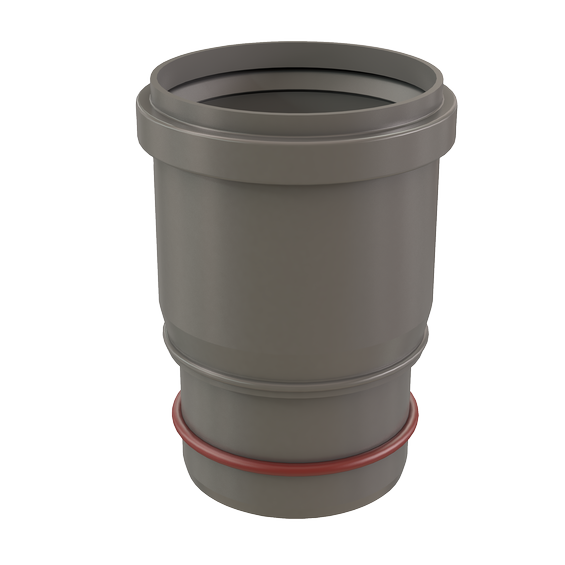

Appliance Adaptor 101mm to 4"

Article number: ISAO10104

Custom InnoFlue Appliance Adaptors are approved by the appliance manufacturer for use on specific makes/models of furnaces, water heaters, and boilers. Consult the Centrotherm OEM manual to find specific Appliance Adaptor specified for use on the intended appliance. InnoFlue Appliance Adaptors have undergone rigorous testing and are engineered to adapt to InnoFlue at the boiler connection. Always follow appliance I&O manual.

  • Approved for use by trusted appliance manufacturers.
  • Integrated gasket helps form airtight seal.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

All media

Appliance Adaptor 101mm to 4"

Specifications

General

Product Name
Appliance Adaptor 101mm to 4"
Trade name
InnoFlue
GTIN
0815010015490
Part number
250408200890

Technical

Color
Gray
Material
PPs
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
176 mm / 6.9 inch
Height
128 mm / 5 inch
Diameter flue pipe
110 mm / 4 inch
Width
128 mm / 5 inch
Net weight
0.212 kg / 0.5 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
176 mm / 6.9 inch
Packaging / Trade height
128 mm / 5 inch
Number per packaging
1
Gross weight
0.212 kg / 0.5 lbs
Packaging / Trade width
128 mm / 5 inch

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
