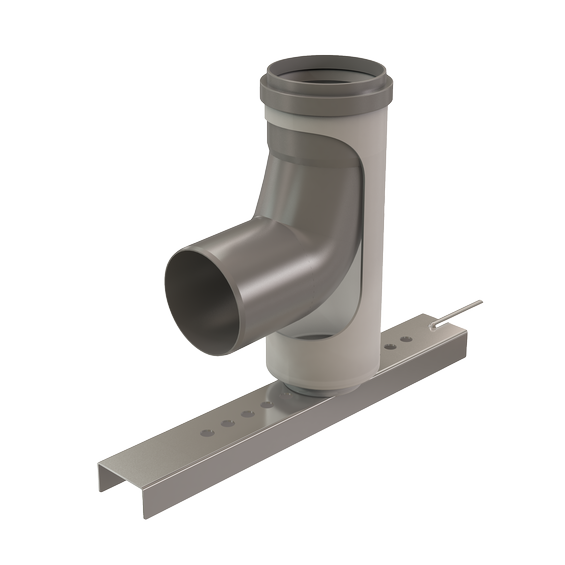

3" Base Support

Article number: ISBS0387

InnoFlue Base Supports are a crucial component designed to provide structural stability and support to vertical portions of exhaust systems. Crafted with durability and engineering precision, InnoFlue Base Supports ensure that the weight and stress of the exhaust system are properly distributed and absorbed. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Base Supports help maintain compliance with support regulations.

  • Helps maintain compliance with support regulations.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Rated to 230°F (110°C).
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
View all specifications

All media

3" Base Support

Specifications

General

Product Name
3" Base Support
Trade name
InnoFlue
GTIN
0815010010235
Part number
250406101690

Technical

Color
Gray
Material flue pipe
PPs
System type
Single wall

Dimensions

Length gross
400 mm / 15.7 inch
Height
94 mm / 3.7 inch
Diameter flue pipe
80 mm / 3 inch
Width
270 mm / 10.6 inch
Net weight
0 kg / 0 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
400 mm / 15.7 inch
Packaging / Trade height
94 mm / 3.7 inch
Number per packaging
1
Gross weight
0 kg / 0 lbs
Packaging / Trade width
270 mm / 10.6 inch

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
