10" Universal Condensate Drain

Article number: ISUCD10

Manufactured from environmentally friendly polypropylene, the InnoFlue Universal Condensate Drain promotes the swift and effective removal of condensates, preventing water buildup and potential damage to heating systems systems. Evaluated to UL1738 and ULCS6363 by ICC, the universal condensate installs quickly without glues, primers or solvents ensuring secure fit and leak-free connection.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Secure fit prevents leaks and allows for efficiency condensate removal.
  • Thin-wall drain is durable and lightweight.
  • Installs quickly without glues, primers, or solvents.
View all specifications

All media

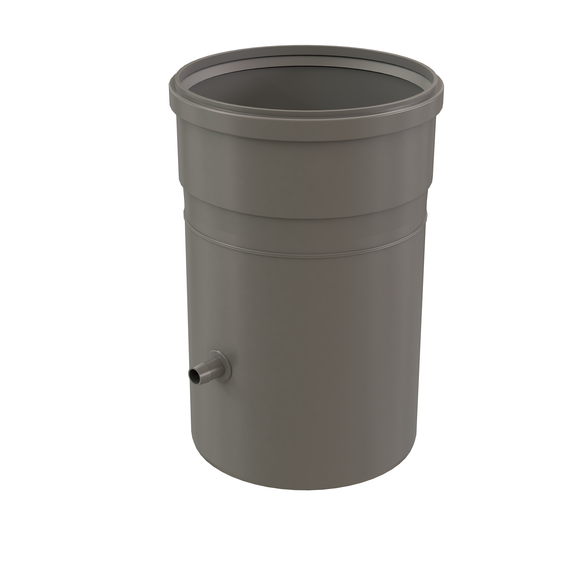

InnoFlue single wall universal condensate drain 10" PPs grey

Specifications

General

Product Name
10" Universal Condensate Drain
Trade name
InnoFlue
GTIN
0810017292172
Part number
250408600020

Technical

Color
Gray
Material flue pipe
PPs

Dimensions

Length gross
403.86 mm / 15.9 inch
Height
249.94 mm / 9.8 inch
Width
249.94 mm / 9.8 inch
Diameter flue pipe
250 mm / 10 inch

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade width
249.94 mm / 9.8 inch
Number per packaging
1
Packaging / Trade length
403.86 mm / 15.9 inch
Packaging / Trade height
249.94 mm / 9.8 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
