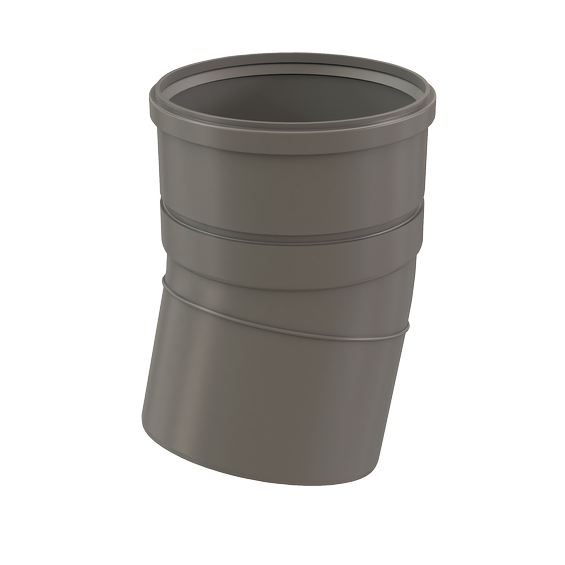

10" x 15 Elbow

Article number: ISEL1015

Engineered for venting applications, InnoFlue elbows provide stability to offsets in the vent system. The integrated EPDM gaskets assure an airtight seal while installing quickly without the need for glues, primers, or solvents. Effortlessly manage directional changes in the vent system with elbows evaluated to UL1738 and ULCS636. Crafted for durability and optimal performance, InnoFlue elbows come provide a quick solution to tricky vent layouts.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Integrated EPDM gasket assures airtight seal.
  • Durable and lightweight.
  • Installs quickly without glues, primers, or solvents.
  • Suitable for outdoor installation.
View all specifications

All media

10" x 15 Elbow

Specifications

General

Product Name
10" x 15 Elbow
Trade name
InnoFlue
GTIN
0815010017418
Part number
250402601450

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
398.78 mm / 15.7 inch
Height
271.78 mm / 10.7 inch
Diameter flue pipe
250 mm / 10 inch
Width
298.45 mm / 11.7 inch
Net weight
1.38 kg / 3 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
398.78 mm / 15.7 inch
Packaging / Trade height
271.78 mm / 10.7 inch
Number per packaging
1
Gross weight
1.38 kg / 3 lbs
Packaging / Trade width
298.45 mm / 11.7 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
