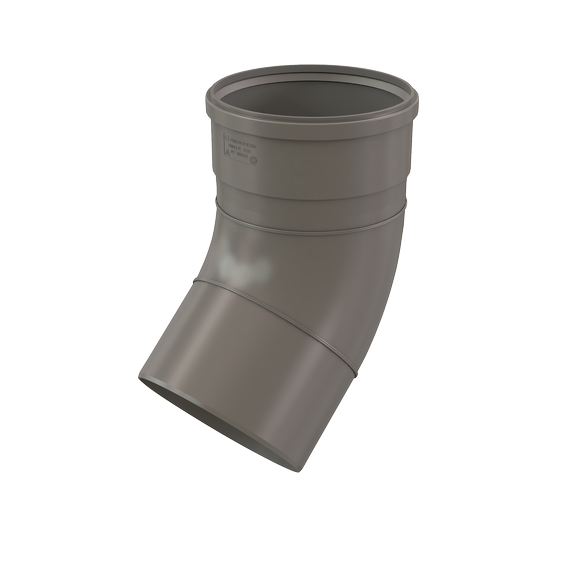

10" x 45 Elbow

Article number: ISEL1045

Engineered for venting applications, InnoFlue elbows provide stability to offsets in the vent system. The integrated EPDM gaskets assure an airtight seal while installing quickly without the need for glues, primers, or solvents. Effortlessly manage directional changes in the vent system with elbows evaluated to UL1738 and ULCS636. Crafted for durability and optimal performance, InnoFlue elbows come provide a quick solution to tricky vent layouts.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Integrated EPDM gasket assures airtight seal.
  • Durable and lightweight.
  • Installs quickly without glues, primers, or solvents.
  • Suitable for outdoor installation.
View all specifications

All media

10" x 45 Elbow

Specifications

General

Product Name
10" x 45 Elbow
Trade name
InnoFlue
GTIN
0815010012079
Part number
250405601470

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
513 mm / 20.2 inch
Height
274 mm / 10.8 inch
Diameter flue pipe
250 mm / 10 inch
Width
393 mm / 15.5 inch
Net weight
1.568 kg / 3.5 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
513 mm / 20.2 inch
Packaging / Trade height
274 mm / 10.8 inch
Number per packaging
1
Gross weight
1.568 kg / 3.5 lbs
Packaging / Trade width
393 mm / 15.5 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
