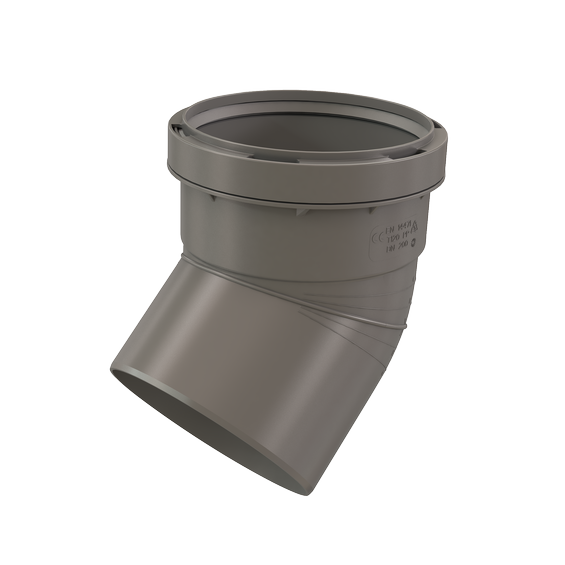

8" x 45 Zero Radius Elbow

Article number: ISELS0845

Engineered for venting applications, InnoFlue elbows provide stability to offsets in the vent system. The integrated EPDM gaskets assure an airtight seal while installing quickly without the need for glues, primers, or solvents. Effortlessly manage directional changes in the vent system with elbows evaluated to UL1738 and ULCS636. Crafted for durability and optimal performance, InnoFlue elbows come provide a quick solution to tricky vent layouts.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Integrated EPDM gasket assures airtight seal.
  • Durable and lightweight.
  • Installs quickly without glues, primers, or solvents.
  • Suitable for outdoor installation.
View all specifications

All media

ISELLXX87UV

Specifications

General

Product Name
8" x 45 Zero Radius Elbow
Trade name
InnoFlue
GTIN
0815010018385
Part number
250405501660

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
331 mm / 13 inch
Height
231 mm / 9.1 inch
Diameter flue pipe
200 mm / 8 inch
Width
282 mm / 11.1 inch
Net weight
0.932 kg / 2.1 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
331 mm / 13 inch
Packaging / Trade height
231 mm / 9.1 inch
Number per packaging
1
Gross weight
0.932 kg / 2.1 lbs
Packaging / Trade width
282 mm / 11.1 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
