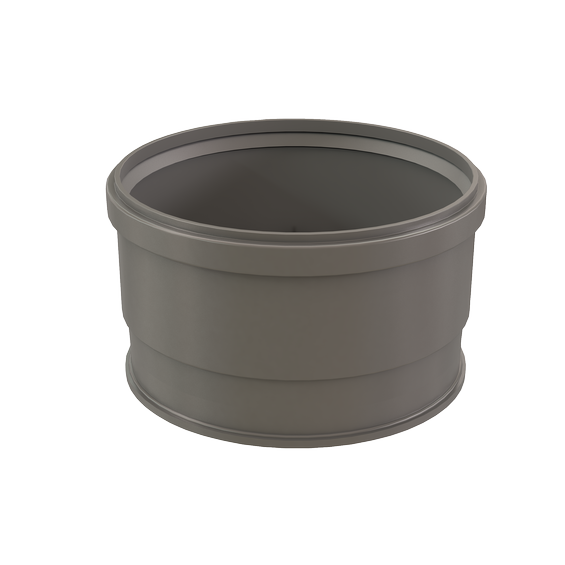

10" Tee Cap

Article number: ISTC10

10" Tee Cap
10" Tee Cap

InnoFlue Tee Cap provide a versatile solution designed to optimize your exhaust system's performance and maintain its integrity. Crafted with precision and durability, InnoFlue Tee Caps ensure a secure seal and prevents leaks at the junction of exhaust system tees. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Tee Caps are a part of InnoFlue's Condensate Management Portfolio.

  • Forms airtight seal and protects from leaks at any open connection in vent system
  • Lightweight and durable
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
10" Tee Cap
Trade name
InnoFlue
GTIN
0815010012956
Part number
250407603360

Color
Gray
Material
PPs
System type
Single wall
Shape
Circular

Length gross
274 mm / 10.8 inch
Height
156 mm / 6.1 inch
Diameter flue pipe
250 mm / 10 inch
Width
274 mm / 10.8 inch
Net weight
1.073 kg / 2.4 lbs

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
274 mm / 10.8 inch
Packaging / Trade height
156 mm / 6.1 inch
Number per packaging
1
Gross weight
1.073 kg / 2.4 lbs
Packaging / Trade width
274 mm / 10.8 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
