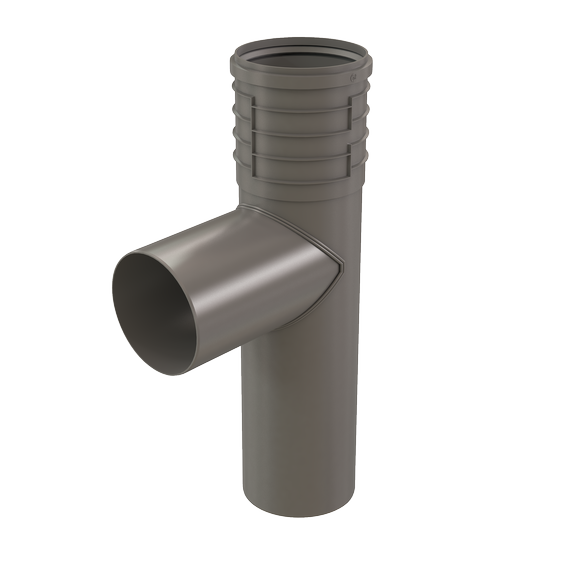

12" Tee

Article number: IST12

Optimize exhaust system configuration with InnoFlue Tees. Engineered for push-fit installation, InnoFlue Tees install quickly without glues, primers, or solvents. Elevate the functionality and versatility of your exhaust system with a versatile product evaluated to UL1738 and ULCS636 by ICC.

  • Provides additional design and configuration versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
  • Rated to 230°F (110°C).
View all specifications

All media

12" Tee

Specifications

General

Product Name
12" Tee
Trade name
InnoFlue
GTIN
0815010013212
Part number
250407703030

Technical

Color
Gray
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
1245.87 mm / 49 inch
Height
350.52 mm / 13.8 inch
Diameter flue pipe
315 mm / 12 inch
Width
664.21 mm / 26.1 inch
Net weight
8.69 kg / 19.2 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
1245.87 mm / 49 inch
Packaging / Trade height
350.52 mm / 13.8 inch
Number per packaging
1
Gross weight
7.711 kg / 17 lbs
Packaging / Trade width
664.21 mm / 26.1 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
