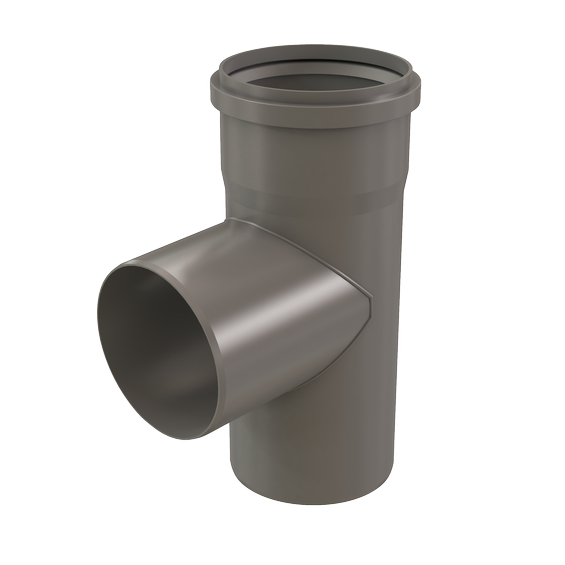

6" Tee

Article number: IST06

Optimize exhaust system configuration with InnoFlue Tees. Engineered for push-fit installation, InnoFlue Tees install quickly without glues, primers, or solvents. Elevate the functionality and versatility of your exhaust system with a versatile product evaluated to UL1738 and ULCS636 by ICC.

  • Provides additional design and configuration versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Lightweight and durable.
  • Rated to 230°F (110°C).
View all specifications
6" Tee

All media

6" Tee
6" Tee
6" Tee

Specifications

General

Product Name
6" Tee
Trade name
InnoFlue
GTIN
0815010010860
Part number
250407403000

Technical

Color
Gray
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
394 mm / 15.5 inch
Height
183 mm / 7.2 inch
Diameter flue pipe
160 mm / 6 inch
Width
285 mm / 11.2 inch
Net weight
0.772 kg / 1.7 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
394 mm / 15.5 inch
Packaging / Trade height
183 mm / 7.2 inch
Number per packaging
1
Gross weight
0.772 kg / 1.7 lbs
Packaging / Trade width
285 mm / 11.2 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
