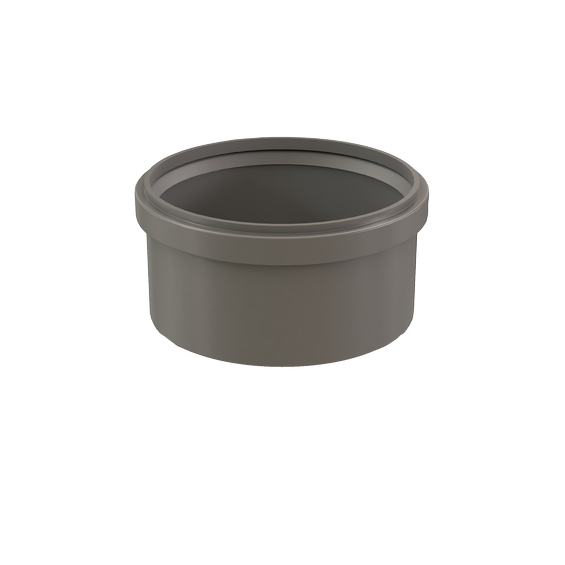

8" Tee Cap

Article number: ISTC08

8" Tee Cap
8" Tee Cap

InnoFlue Tee Cap provide a versatile solution designed to optimize your exhaust system's performance and maintain its integrity. Crafted with precision and durability, InnoFlue Tee Caps ensure a secure seal and prevents leaks at the junction of exhaust system tees. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Tee Caps are a part of InnoFlue's Condensate Management Portfolio.

  • Forms airtight seal and protects from leaks at any open connection in vent system
  • Lightweight and durable
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

Specifications

Product Name
8" Tee Cap
Trade name
InnoFlue
GTIN
0815010012987
Part number
250407503350

Color
Gray
Material
PPs
System type
Single wall
Shape
Circular

Length gross
224 mm / 8.8 inch
Height
160 mm / 6.3 inch
Diameter flue pipe
200 mm / 8 inch
Width
224 mm / 8.8 inch
Net weight
0.743 kg / 1.6 lbs

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
224 mm / 8.8 inch
Packaging / Trade height
160 mm / 6.3 inch
Number per packaging
1
Gross weight
0.743 kg / 1.6 lbs
Packaging / Trade width
224 mm / 8.8 inch

Temperature resistance (max.)
120 °C

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
