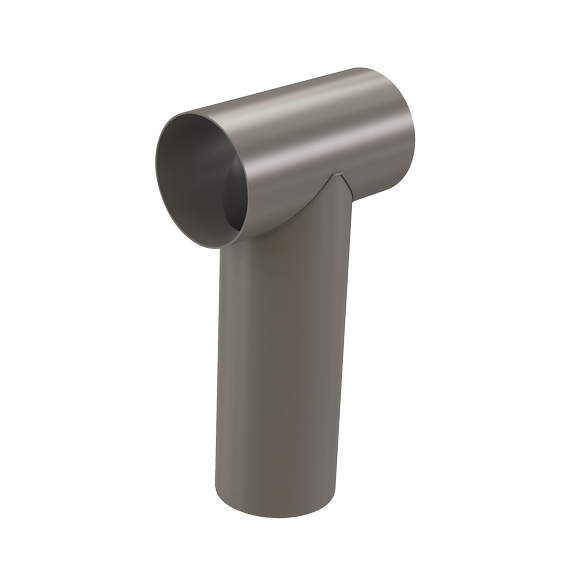

12" Termination Tee Long PPs Gray

Article number: ISTT1220

InnoFlue Termination Tees are an essential component in the InnoFlue termination portfolio. Designed to efficiently manage exhaust gases at the termination point, InnoFlue Termination Tees offer versatility in configuration without sacrificing performance. Rated to 230°F (110°C), elevate the functionality and adaptability of your exhaust system with a product that embodies reliability, durability, and ease of installation.

  • Improves Exhaust Flow at termination point.
  • Lightweight and durable
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

All media

ISTT12

Specifications

General

Product Name
12" Termination Tee Long PPs Gray
Trade name
InnoFlue
GTIN
0815010017036
Part number
250407703270

Technical

Color
Gray
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
1068 mm / 42 inch
Height
315 mm / 12.4 inch
Diameter flue pipe
315 mm / 12 inch
Width
572 mm / 22.5 inch
Net weight
6.22 kg / 13.7 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
1068 mm / 42 inch
Packaging / Trade height
315 mm / 12.4 inch
Number per packaging
1
Gross weight
6.22 kg / 13.7 lbs
Packaging / Trade width
572 mm / 22.5 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
