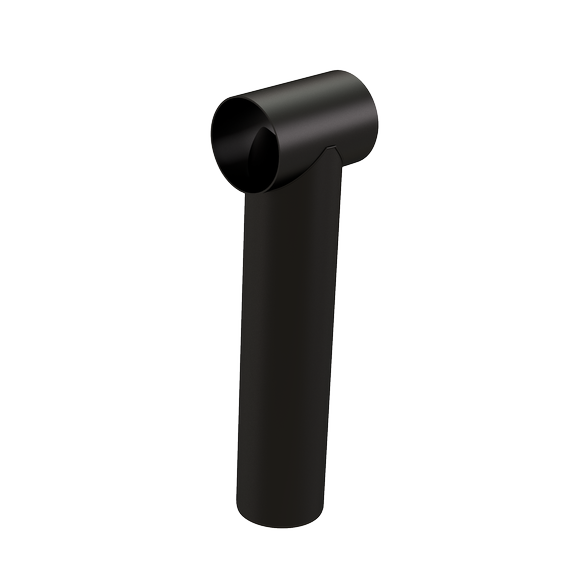

6" Termination Tee Long

Article number: ISTT0620

InnoFlue Termination Tees are an essential component in the InnoFlue termination portfolio. Designed to efficiently manage exhaust gases at the termination point, InnoFlue Termination Tees offer versatility in configuration without sacrificing performance. Rated to 230°F (110°C), elevate the functionality and adaptability of your exhaust system with a product that embodies reliability, durability, and ease of installation.

  • Improves Exhaust Flow at termination point.
  • Lightweight and durable
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications
ISTT_gray

All media

ISTT_gray
ISTT_gray
ISTT_gray

Specifications

General

Product Name
6" Termination Tee Long
Trade name
InnoFlue
GTIN
0815010014226
Part number
250407403240

Technical

Color
Black
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
787 mm / 31 inch
Height
160 mm / 6.3 inch
Diameter flue pipe
160 mm / 6 inch
Width
237 mm / 9.3 inch
Net weight
1.22 kg / 2.7 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
787 mm / 31 inch
Packaging / Trade height
160 mm / 6.3 inch
Number per packaging
1
Gross weight
1.22 kg / 2.7 lbs
Packaging / Trade width
237 mm / 9.3 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
