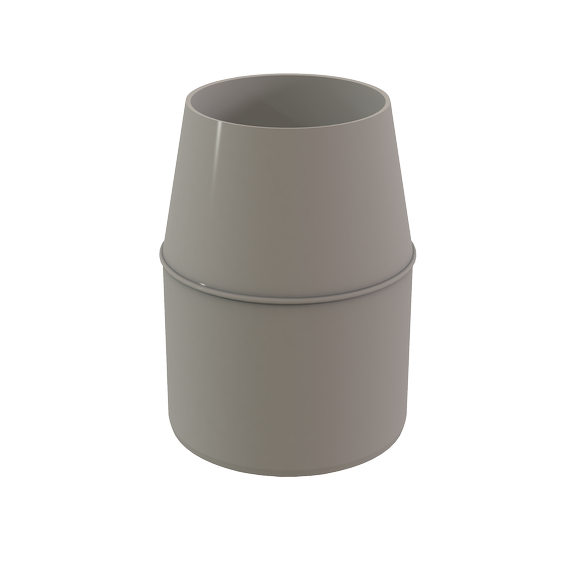

6" to 5" Velocity Cone

Article number: ISVC0605

Evaluated to UL1738 and ULCS636 by ICC, InnoFlue’s lightweight velocity cone is designed to improve the flow of exhaust gases as they exit exhaust system facilitating smoother and more efficient exhaust gas flow. The cone's tapered design improves the flow of exhaust gases to as they pass through the exit. InnoFlue’s polypropylene velocity cone provides key benefits such as improving the exhaust system’s overall efficiency through reduced backpressure by optimizing the exhaust flow.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Lightweight and durable.
  • Improves exhaust flow.
  • Installs quickly & easily without glues, primers, or solvents.
  • Improves appliance and vent system efficiency.
View all specifications

All media

6" to 5" Velocity Cone

Specifications

General

Product Name
6" to 5" Velocity Cone
Trade name
InnoFlue
GTIN
0815010017340
Part number
250407403070

Technical

Color
Gray
Material
PPs
Bird protection
System type
Single wall
Material flue pipe
PPs

Dimensions

Length gross
220 mm / 8.7 inch
Height
160 mm / 6.3 inch
Diameter flue pipe
160 mm / 6 inch
Width
160 mm / 6.3 inch
Net weight
0.316 kg / 0.7 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
220 mm / 8.7 inch
Packaging / Trade height
160 mm / 6.3 inch
Number per packaging
1
Gross weight
0.316 kg / 0.7 lbs
Packaging / Trade width
160 mm / 6.3 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
