12" Test Port

Article number: ISTP12

Quickly access flue gas with InnoFlue Test Port. Integrated analysis port allows for immediate testing of flue gas and condensates in the vent system. Install as close to the appliance as possible to assure accurate diagnostics and testing measurements. Evaluated to UL1738 and ULCS636, InnoFlue Test Ports are engineered with safe venting at the forefront while providing the same easy installation benefits as standard InnoFlue Vent lengths.

  • Integrated port allows quick access for combustion analysis and testing.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Durable and lightweight.
  • Installs quickly & easily without glues, primers, or solvents.
View all specifications

All media

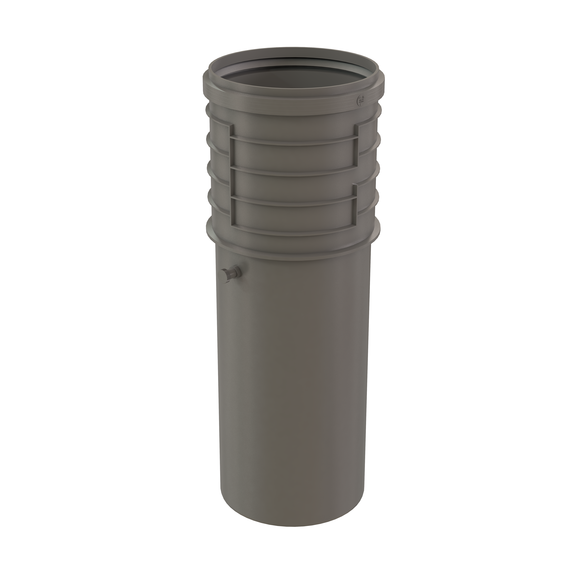

InnoFlue single wall test port 12" PPs grey

Specifications

General

Product Name
12" Test Port
Trade name
InnoFlue
GTIN
0815010013250
Part number
250408702180

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
937.26 mm / 36.9 inch
Height
350.52 mm / 13.8 inch
Diameter flue pipe
315 mm / 12 inch
Width
370.84 mm / 14.6 inch
Net weight
5.54 kg / 12.2 lbs

Logistical

Intrastat
3917400090
Base unit packaging
Unpacked
Packaging / Trade length
937.26 mm / 36.9 inch
Packaging / Trade height
350.52 mm / 13.8 inch
Number per packaging
1
Gross weight
5.443 kg / 12 lbs
Packaging / Trade width
370.84 mm / 14.6 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
