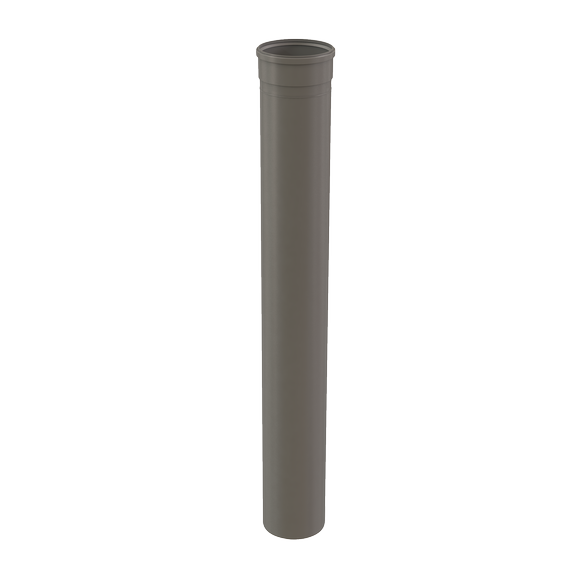

10" x 72" Vent Length

Article number: ISVL106

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue vent lengths are the central component in our industry leading vent system. Engineered to withstand flue gas temperatures up to 230°F (110°C), InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for high-efficiency venting up to 230°F (110°C).
  • Durable and lightweight.
  • Integrated gasket assures airtight seal without without glues, primers, or solvents.
  • Available in up to industry-best 10' lengths.
View all specifications

All media

10" x 72" Vent Length

Specifications

General

Product Name
10" x 72" Vent Length
Trade name
InnoFlue
GTIN
0815010011959
Part number
250400602490

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
1929 mm / 75.9 inch
Height
274 mm / 10.8 inch
Diameter flue pipe
250 mm / 10 inch
Width
274 mm / 10.8 inch
Net weight
5.461 kg / 12 lbs

Logistical

Intrastat
3917220000
Base unit packaging
Unpacked
Packaging / Trade length
1929 mm / 75.9 inch
Packaging / Trade height
274 mm / 10.8 inch
Number per packaging
1
Gross weight
5.461 kg / 12 lbs
Packaging / Trade width
274 mm / 10.8 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
