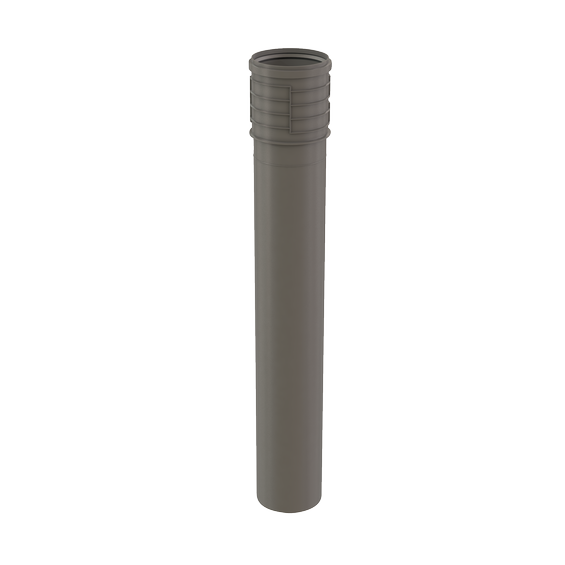

12" x 72" Vent Length

Article number: ISVL126

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue vent lengths are the central component in our industry leading vent system. Engineered to withstand flue gas temperatures up to 230°F (110°C), InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for high-efficiency venting up to 230°F (110°C).
  • Durable and lightweight.
  • Integrated gasket assures airtight seal without without glues, primers, or solvents.
  • Available in up to industry-best 10' lengths.
View all specifications

All media

12" x 72" Vent Length

Specifications

General

Product Name
12" x 72" Vent Length
Trade name
InnoFlue
GTIN
0815010011928
Part number
250400702520

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
2148.84 mm / 84.6 inch
Height
350.52 mm / 13.8 inch
Diameter flue pipe
315 mm / 12 inch
Width
350.52 mm / 13.8 inch
Net weight
11.8 kg / 26 lbs

Logistical

Intrastat
3917220000
Base unit packaging
Unpacked
Packaging / Trade length
2148.84 mm / 84.6 inch
Packaging / Trade height
350.52 mm / 13.8 inch
Number per packaging
1
Gross weight
10.501 kg / 23.2 lbs
Packaging / Trade width
350.52 mm / 13.8 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
