6" x 120" Vent Length

Article number: ISVL0610

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue vent lengths are the central component in our industry leading vent system. Engineered to withstand flue gas temperatures up to 230°F (110°C), InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

  • Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for high-efficiency venting up to 230°F (110°C).
  • Durable and lightweight.
  • Integrated gasket assures airtight seal without without glues, primers, or solvents.
  • Available in up to industry-best 10' lengths.
View all specifications

All media

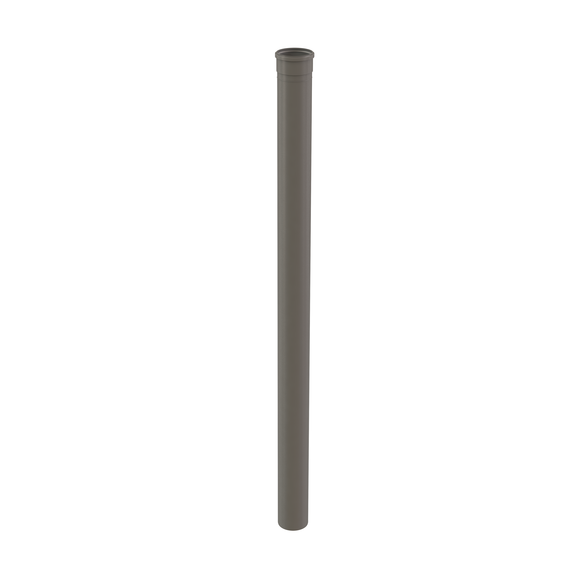

InnoFlue single wall vent length 8" x 120" PPs grey

Specifications

General

Product Name
6" x 120" Vent Length
Trade name
InnoFlue
GTIN
0815010017265
Part number
250400402530

Technical

Color
Gray
Material
PPs
System type
Single wall

Dimensions

Length gross
184.15 mm / 7.2 inch
Height
3162.3 mm / 124.5 inch
Width
184.15 mm / 7.2 inch
Diameter flue pipe
160 mm / 6 inch

Logistical

Base unit packaging
Unpacked
Packaging / Trade width
184.15 mm / 7.2 inch
Packaging / Trade length
184.15 mm / 7.2 inch
Packaging / Trade height
3162.3 mm / 124.5 inch

Performance

Temperature resistance (max.)
120 °C / 248 °F
