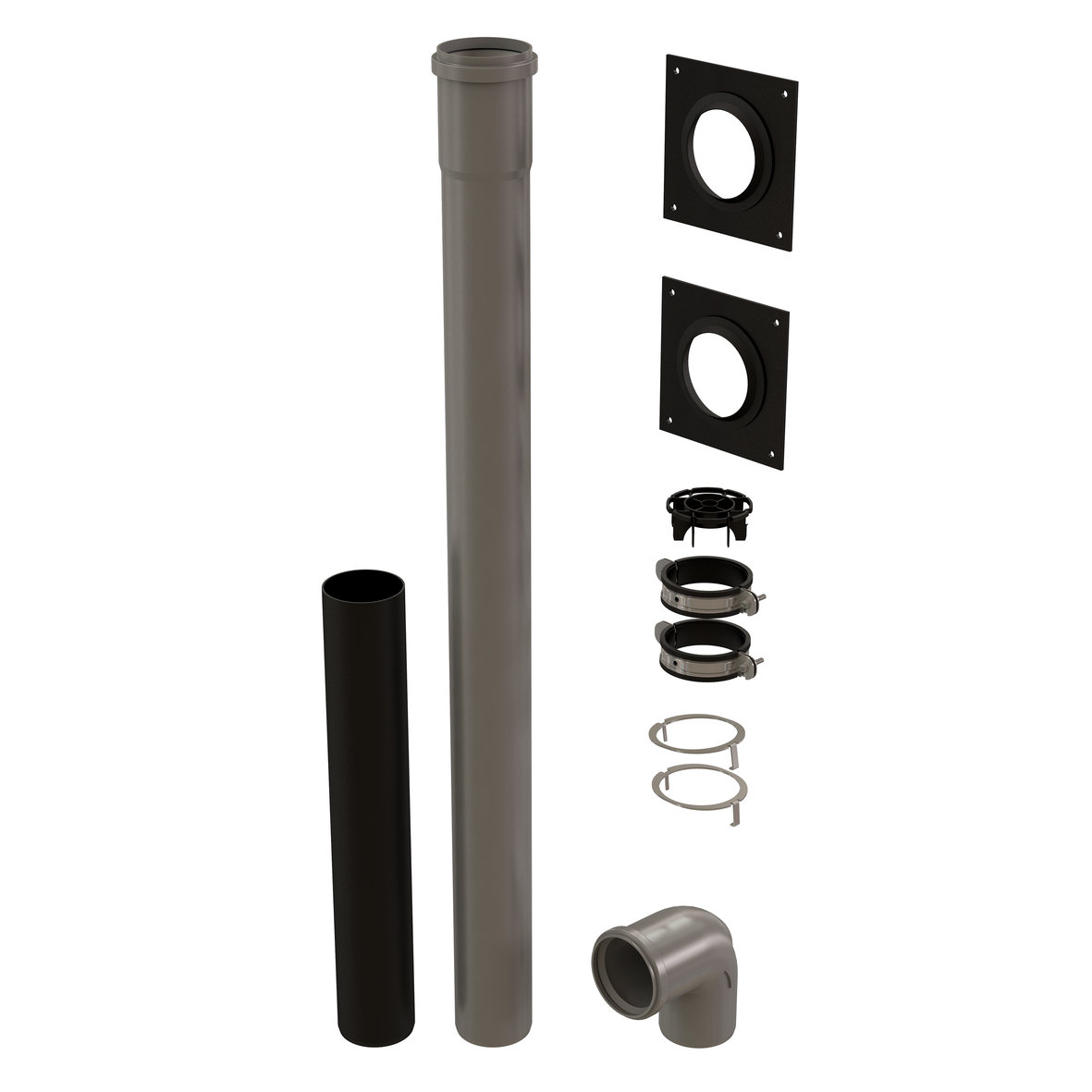

3in Single Wall Vent Kit Horizontal / kit contents v2

3" Single Wall Vent Kit Horizontal

Article number: ISVKH03

InnoFlue Horizontal Vent Kits include all the components necessary to sidewall terminate an exhaust run. Rated to 230°F (110°C), InnoFlue Horizontal Vent Kits are the easiest way to quickly complete shorter horizontal installations without repeated trips to the distributor.

Saves time and money at jobsite and distributor.
Evaluated to UL1738 and ULCS636 by ICC.
Lightweight and durable.
Installs quickly & easily without glues, primers, or solvents.
Rated to 230°F (110°C).

View all specifications

Specifications

Product Name

3" Single Wall Vent Kit Horizontal

Accessories in package

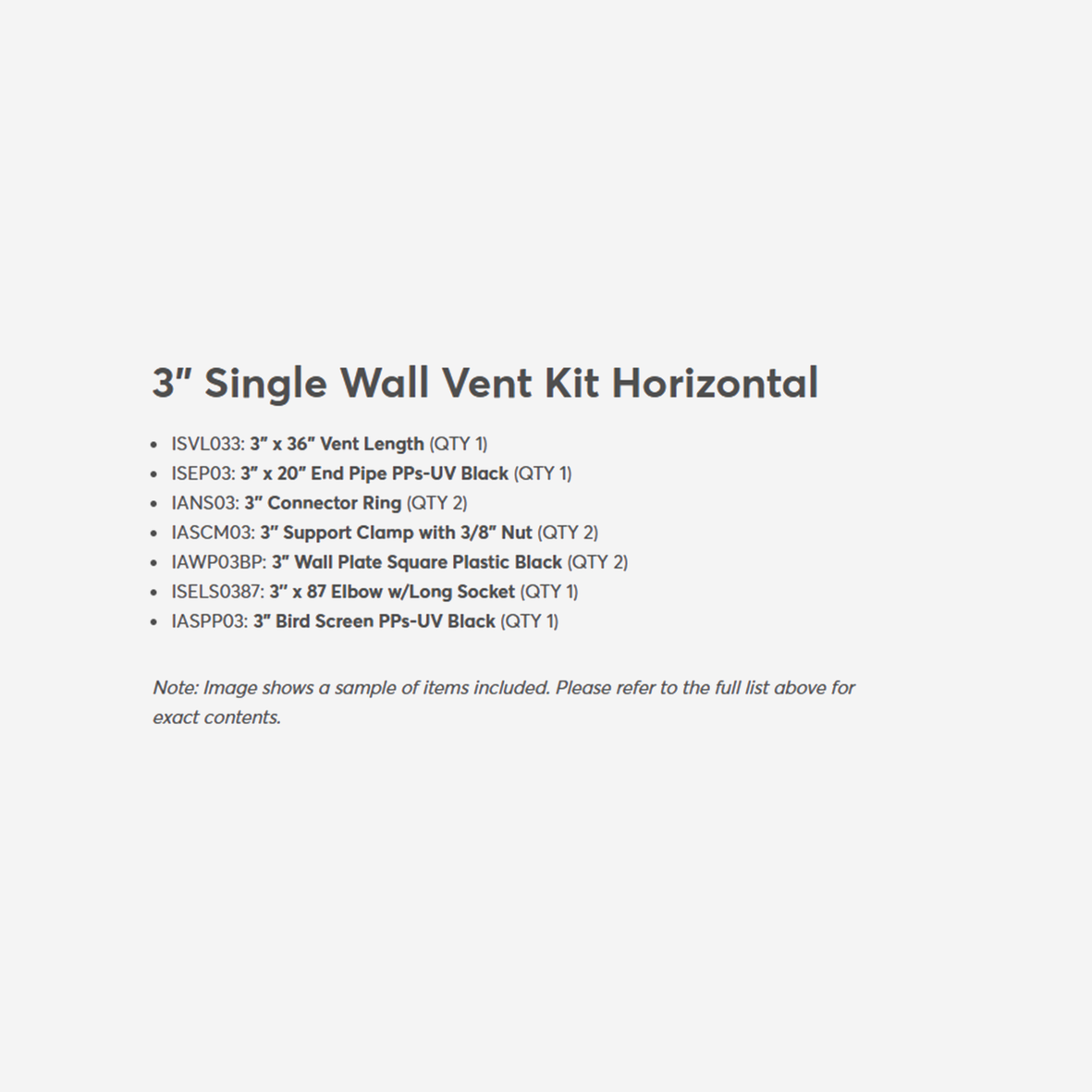

Bracket / Inner plate / Outer plate / Clamp / Bird protection

Part number

250407103290

GTIN

0815010014967

Trade name

InnoFlue

Color

Gray

Material

PPs

Bird protection

System type

Single wall

Material flue pipe

PPs

Length gross

239 mm / 9.4 inch

Height

1230 mm / 48.4 inch

Diameter flue pipe

80 mm / 3 inch

Width

235 mm / 9.3 inch

Net weight

2.105 kg / 4.6 lbs

Intrastat

3917220000

Base unit packaging

Unpacked

Packaging / Trade length

239 mm / 9.4 inch

Packaging / Trade height

1230 mm / 48.4 inch

Number per packaging

1

Gross weight

2.105 kg / 4.6 lbs

Packaging / Trade width

235 mm / 9.3 inch

Temperature resistance (max.)

120 °C

Certificates (US/CAN)

UL 1738 – ICC-ES / ULC S636 – ICC-ES
