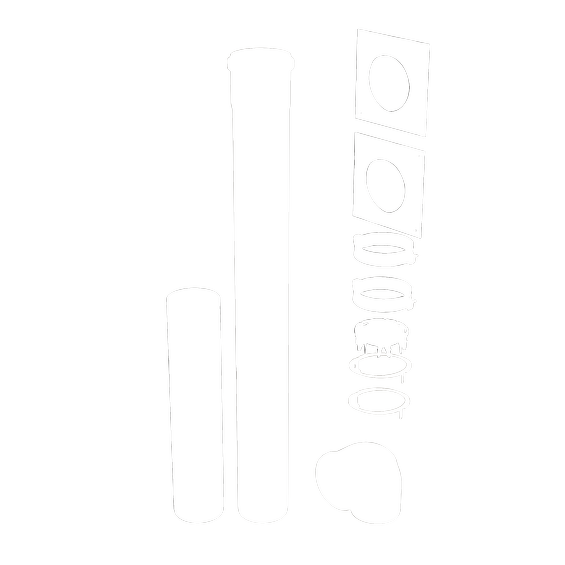

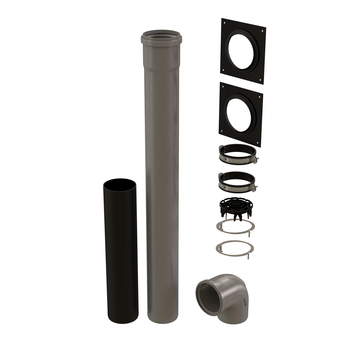

4" Single Wall Vent Kit Horizontal

Article number: ISVKH04

InnoFlue Horizontal Vent Kits include all the components necessary to sidewall terminate an exhaust run. Rated to 230°F (110°C), InnoFlue Horizontal Vent Kits are the easiest way to quickly complete shorter horizontal installations without repeated trips to the distributor.

Saves time and money at jobsite and distributor.
Evaluated to UL1738 and ULCS636 by ICC.
Lightweight and durable.
Installs quickly & easily without glues, primers, or solvents.
Rated to 230°F (110°C).

View all specifications

Specifications

General

Product Name

4" Single Wall Vent Kit Horizontal

Accessories in package

Bracket / Inner plate / Outer plate / Clamp / Bird protection

Part number

250407203300

GTIN

0815010015049

Trade name

InnoFlue

Technical

Color

Gray

Material

PPs

Bird protection

System type

Single wall

Material flue pipe

PPs

Dimensions

Length gross

245 mm / 9.6 inch

Height

1058 mm / 41.7 inch

Diameter flue pipe

110 mm / 4 inch

Width

242 mm / 9.5 inch

Net weight

2.949 kg / 6.5 lbs

Logistical

Intrastat

3917220000

Base unit packaging

Unpacked

Packaging / Trade length

245 mm / 9.6 inch

Packaging / Trade height

1058 mm / 41.7 inch

Number per packaging

1

Gross weight

2.949 kg / 6.5 lbs

Packaging / Trade width

242 mm / 9.5 inch

Performance

Temperature resistance (max.)

120 °C

Certification

Certificates (US/CAN)

UL 1738 – ICC-ES / ULC S636 – ICC-ES
