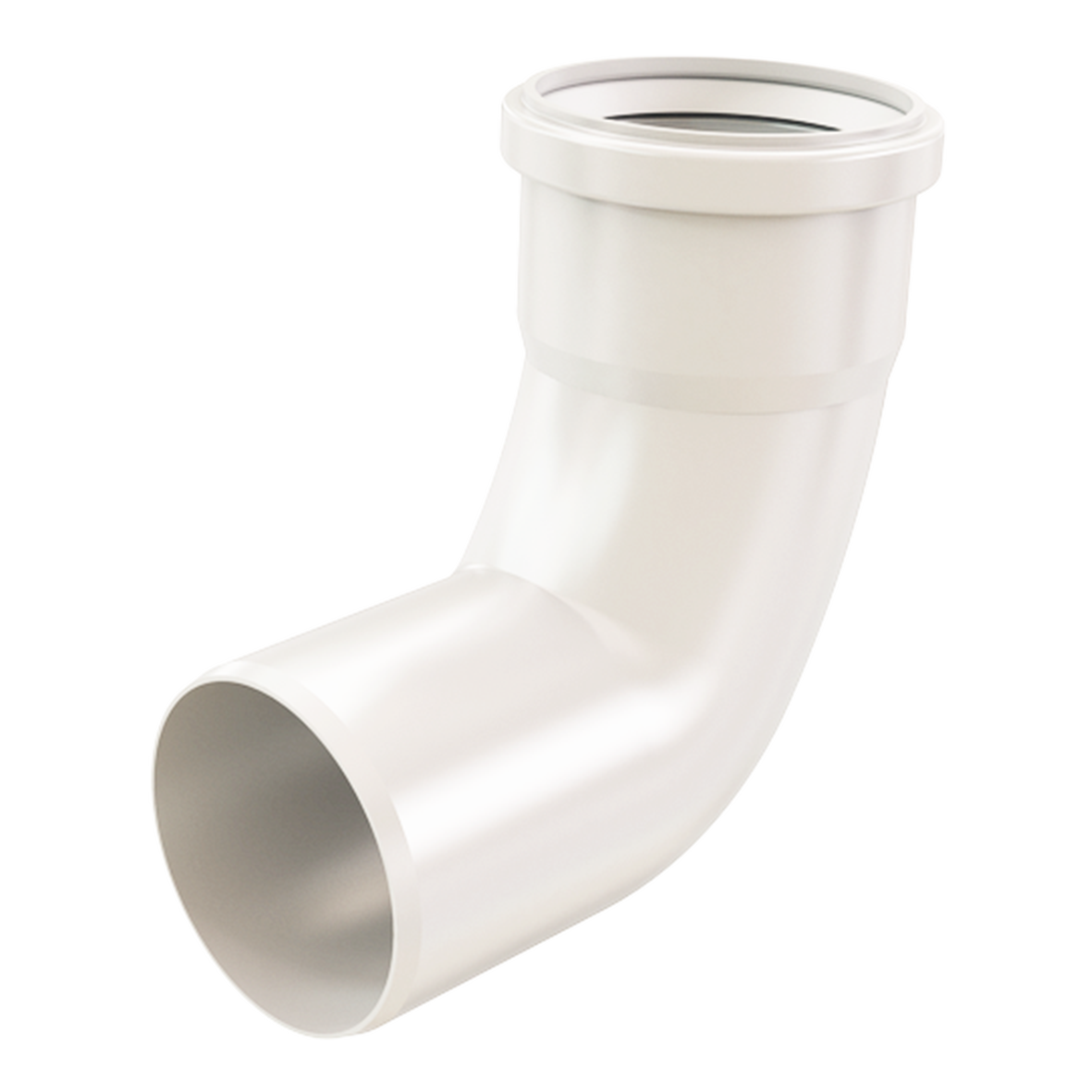

3" x 87 Elbow Long Lite

Article number: ISTLEL0387

3" x 87 Elbow Long Lite
3" x 87 Elbow Long Lite

Engineered for venting applications, InnoFlue Lite elbows provide stability to offsets in the vent system. The integrated EPDM gaskets assure an airtight seal while installing quickly without the need for glues, primers, or solvents. Effortlessly manage directional changes in the vent system with elbows evaluated to CE EN14474. Crafted for durability and optimal performance, InnoFlue Lite elbows provide a quick solution to tricky vent layouts.

  • Evaluated to CE EN 14471 by TUV
  • Integrated EPDM gasket assures airtight seal
  • Strong thin wall
  • Installs quickly without glues, primers, or solvents
  • Suitable for outdoor installation
View all specifications

Specifications

Product Name
3" x 87 Elbow Long Lite
Trade name
InnoFlue
GTIN
0810017295791
Part number
250806100120

Color
Black
Material
PPs
System type
Single wall

Length gross
179 mm / 7 inch
Height
94 mm / 3.7 inch
Diameter flue pipe
80 mm / 3 inch
Width
176 mm / 6.9 inch
Net weight
0.163 kg / 0.4 lbs

Intrastat
3917400090
Gross weight
0.163 kg / 0.4 lbs
Packaging / Trade width
176 mm / 6.9 inch
Base unit packaging
Unpacked
Packaging / Trade length
179 mm / 7 inch
Packaging / Trade height
94 mm / 3.7 inch

CE string
-
Temperature resistance (max.)
120 °C / 248 °F

Downloads
