12" Connector Ring

12" Connector Ring

Article number: IANS12

12" Connector Ring
12" Connector Ring

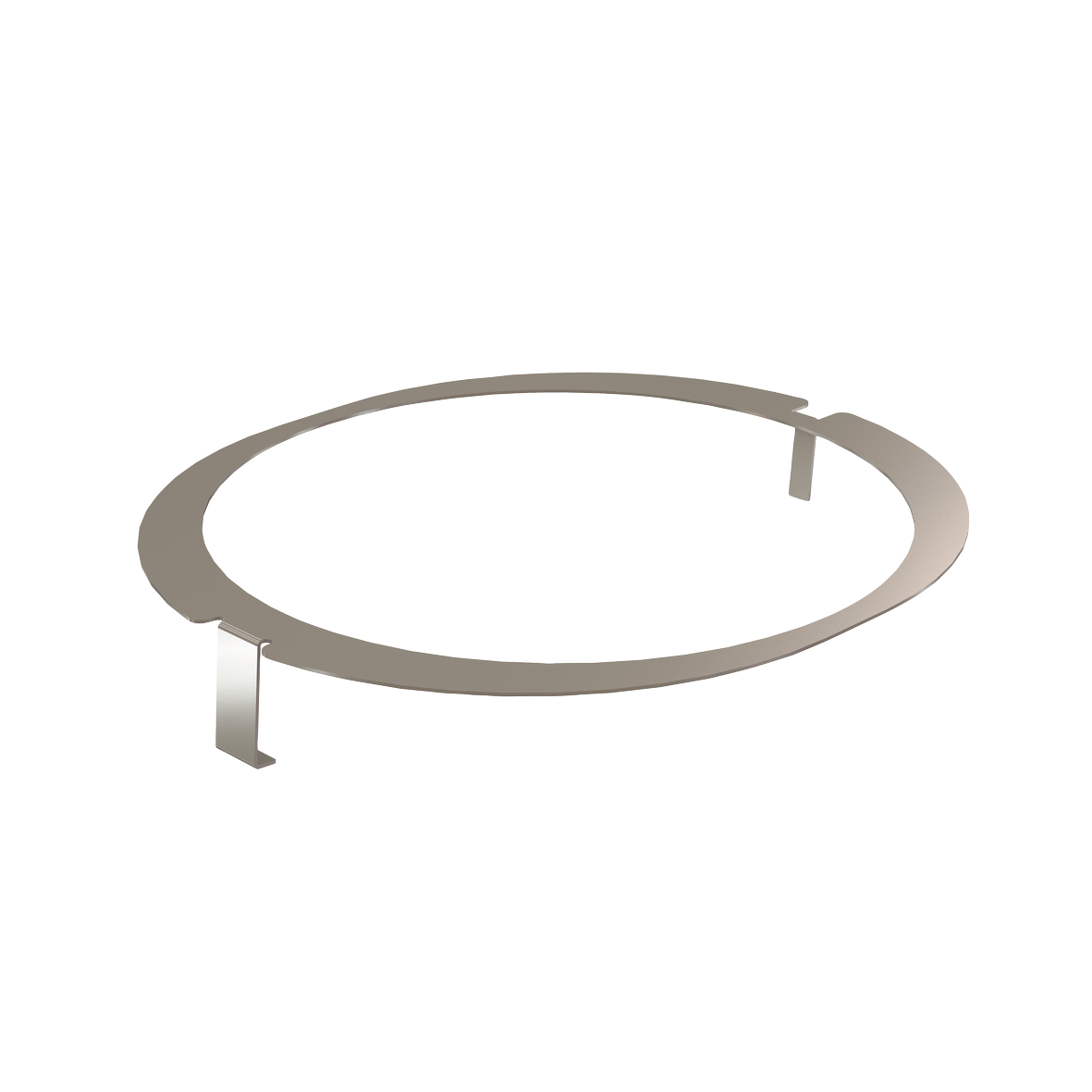

InnoFlue Connector Rings seamlessly integrate with Centrotherm components, ensuring a joint fitting that prevents leaks and maintains airtight exhaust flow. Required in 2", 3" and 4" diameters by UL, InnoFlue Connector Rings are evaluated to the mechanical standard to meet/exceed all relevant tests. Made of galvanized metal, InnoFlue Connector Rings utilize a cantilever system to provide additional support at each fitting connect. InnoFlue Connector Rings are recommended in all diameter applications.

  • Durable metal material adds additional stability to each fitting connection.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Cantilever system helps fitting to exceed relevant mechanical tests.
  • Lightweight and durable.
  • Recommended in all diameter applications.
View all specifications
The product has been added to the order list

With a favorites list, we offer you the opportunity to remember products and collect them together. You can then e-mail this list to yourself as a reminder and as an aid when visiting professional resellers.

To order list Close

Specifications

Product Name
12" Connector Ring
Trade name
InnoFlue
GTIN
0815010018576
Part number
250410703810

Color
Silver
Material
Galvanized

Length gross
378.5 mm / 14.9 inch
Height
58 mm / 2.3 inch
Diameter flue pipe
315 mm / 12 inch
Width
343 mm / 13.5 inch
Net weight
0.312 kg / 0.7 lbs

Intrastat
7326908588
Base unit packaging
Unpacked
Packaging / Trade length
378.5 mm / 14.9 inch
Packaging / Trade height
58 mm / 2.3 inch
Number per packaging
1
Gross weight
0.312 kg / 0.7 lbs
Packaging / Trade width
343 mm / 13.5 inch

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
