3in Octo Clamp

Article number: ILSCC03

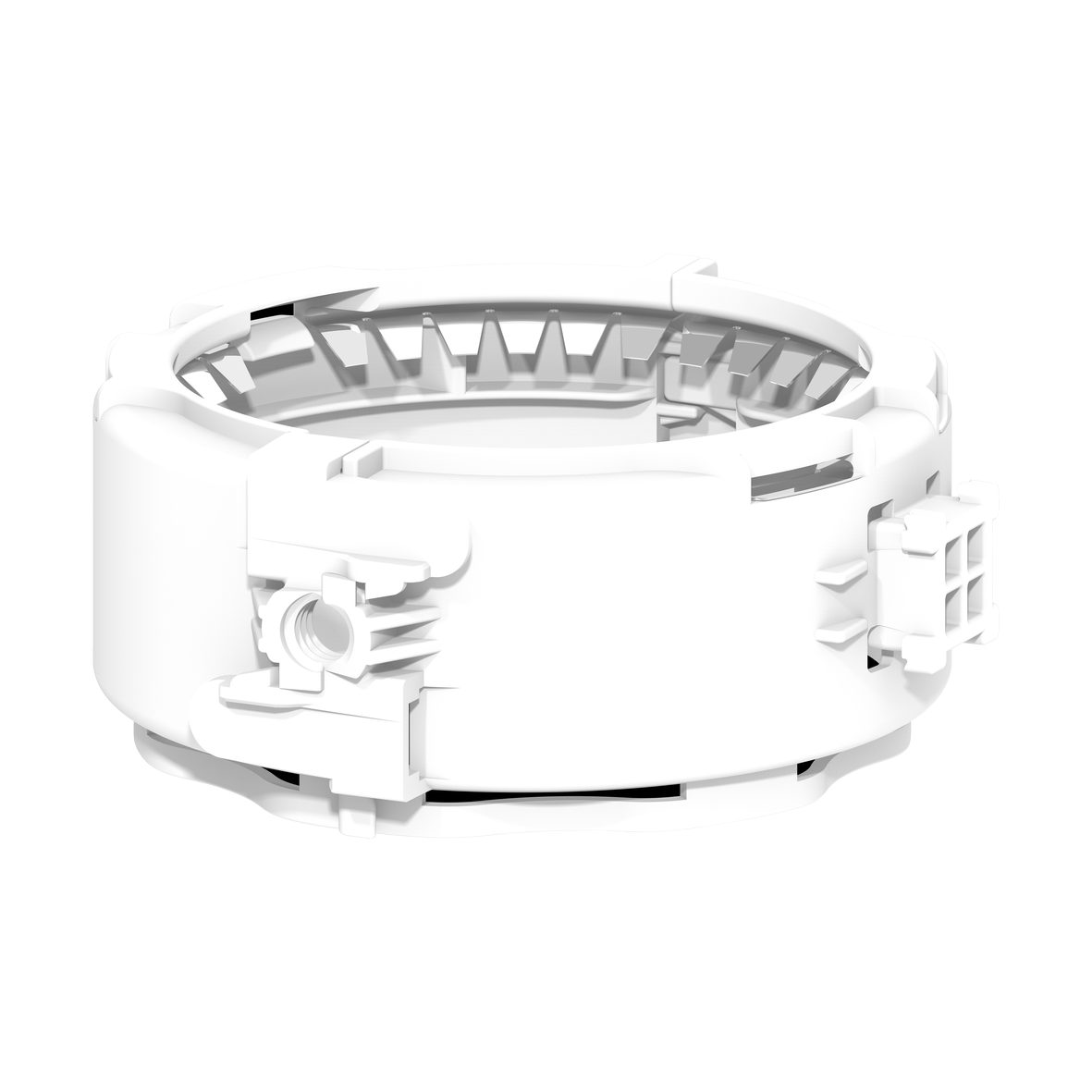

3in Octo Clamp

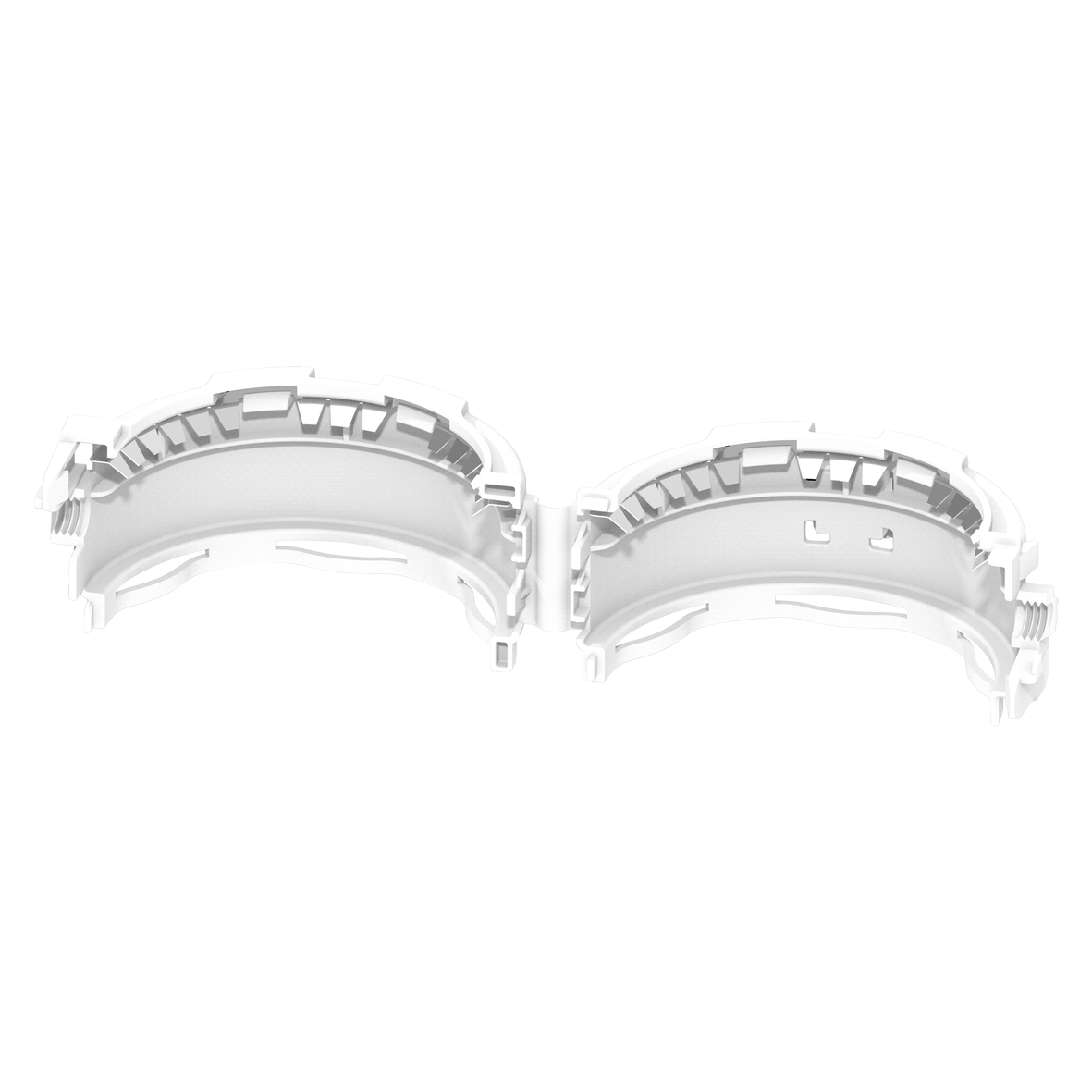

Octo Clamp open

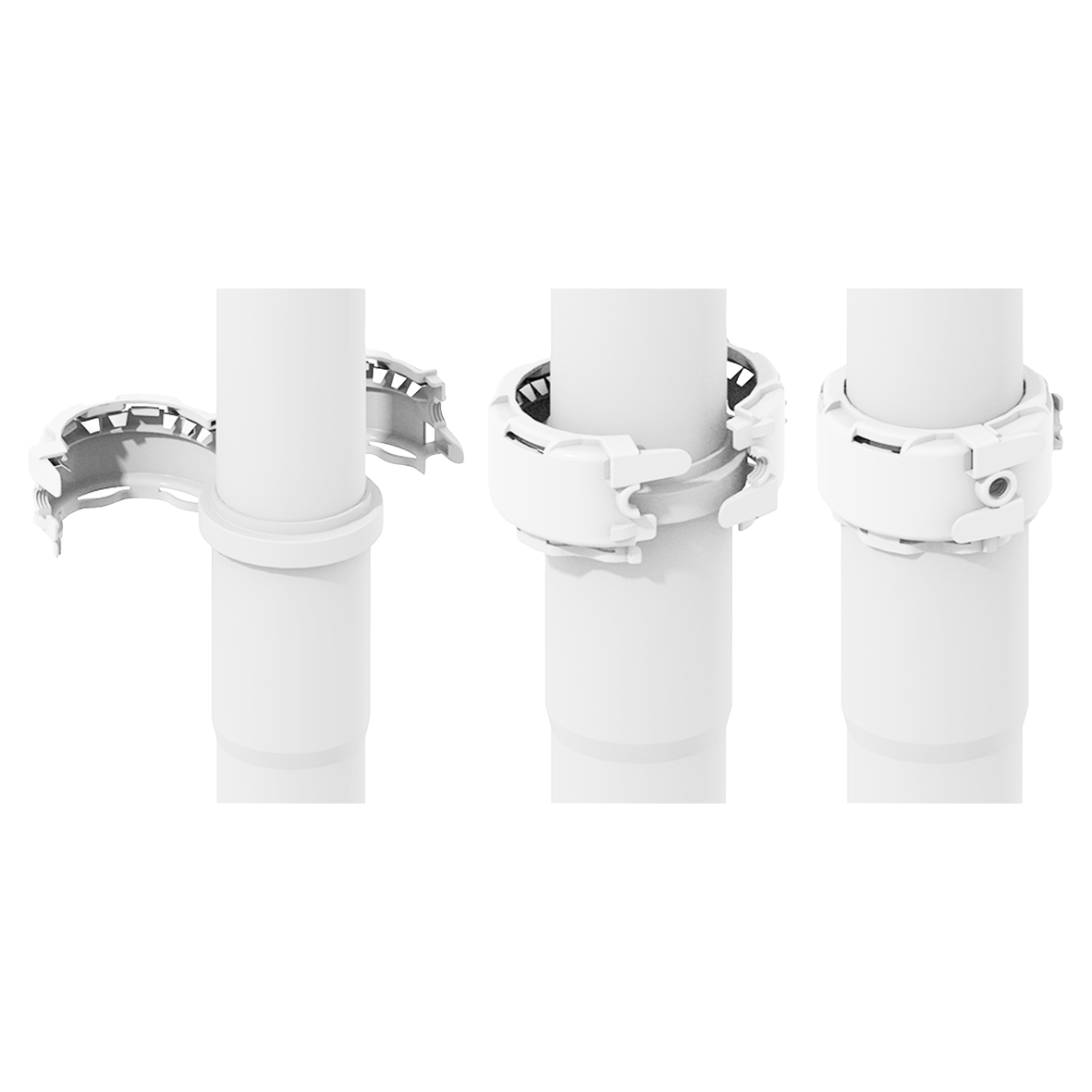

Octo Clamp on lengths

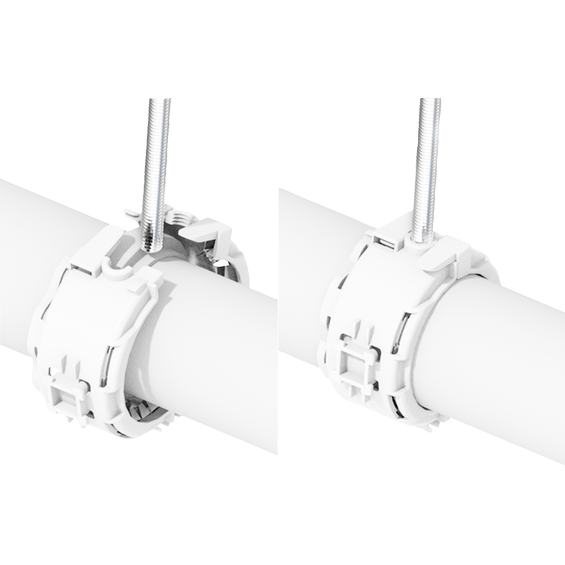

Octo Clamp on Lengths with hanger
3in Octo Clamp
Octo Clamp open
Octo Clamp on lengths
Octo Clamp on Lengths with hanger

The Octo Clamp is engineered to provide enhanced support on all pipe fitting connections. Its robust design reduces the risk of leaks and joint failures while integrating 3/8” threaded rod to support the weight of the vent system. Hangers feature an 8-way connection and can snap together to extend length.

  • Combines joint connection and weight support in one versatile component
  • Integrates with Centrotherm Hanger (ILSCCH) for customizable orientation and length
  • Accepts 3/8” threaded rod
  • Provides significant installation options for vent support requirements
  • Installs quickly & easily, without glues, primers, or solvents
View all specifications

Specifications

Product Name
3in Octo Clamp
Trade name
InnoFlue
GTIN
0810017296538
Part number
250810000230

Color
White
Material
PPs

Length gross
109.22 mm / 4.3 inch
Height
45.72 mm / 1.8 inch
Diameter flue pipe
80 mm / 3 inch
Width
109.22 mm / 4.3 inch
Net weight
37.8 kg / 83.3 lbs

Intrastat
39269000
Gross weight
37.8 kg / 83.3 lbs
Packaging / Trade width
241.3 mm / 9.5 inch
Base unit packaging
Unpacked
Packaging / Trade length
452.12 mm / 17.8 inch
Packaging / Trade height
121.92 mm / 4.8 inch

CE string
-
