4/6" Concentric Vent Kit Vertical

Article number: ICVKV46

InnoFlue Concentric Vertical Vent Kits include all the components necessary to integrate combustion air intake and exhaust runs and terminate in a single pipe vent system through the roof. Reduce penetrations at the roof with supplied InnoFlue Concentric Roof Termination and reduce components with aesthetically pleasing powder white InnoFlue Concentric exterior. Evaluated to UL1738 and ULCS636 by ICC, InnoFlue Concentric Vent Kits install quickly and easily.

  • Pleasing, powder white exterior aesthetic.
  • Integrated two-in-one system reduces time and components.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Saves time at jobsite and distributor.
View all specifications

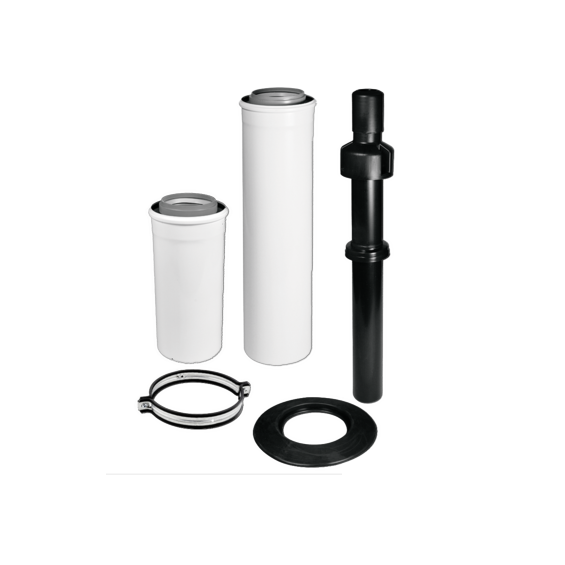

ICVKV
Video thumbnail
Video thumbnail

All media

ICVKV
Video thumbnail
Video thumbnail
ICVKV
Video thumbnail
Video thumbnail
ICVKV

Specifications

General

Product Name
4/6" Concentric Vent Kit Vertical
Trade name
InnoFlue
GTIN
0815010017272
Part number
250411403480

Technical

Color
Gray
Material flue pipe
PPs
System type
Concentric
Material air inlet pipe
Galvanized

Dimensions

Length gross
2032 mm / 80 inch
Height
342.9 mm / 13.5 inch
Diameter air inlet pipe
166 mm
Width
596.9 mm / 23.5 inch
Net weight
5.17 kg / 11.4 lbs
Diameter flue pipe
110 mm / 4 inch

Logistical

Intrastat
7306501010
Base unit packaging
Unpacked
Packaging / Trade length
2032 mm / 80 inch
Packaging / Trade height
2019.3 mm / 79.5 inch
Number per packaging
1
Gross weight
5.171 kg / 11.4 lbs
Packaging / Trade width
596.9 mm / 23.5 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES

Downloads

Brochure/folder

Catalog - UL and ULC Listed InnoFlue

Leaflet/flyer

Quick Guide - InnoFlue
Quick Guide - InnoFlue Commercial Projects
Quick Guide - Large Diameter InnoFlue

4"/6" Concentric Vent Kit - Vertical

The InnoFlue® 4"/6" Concentric Vent Kit - Vertical provides a complete venting solution for compatible high-efficiency heating applications. This concentric kit combines combustion air intake and flue gas exhaust within a single venting system, providing a practical solution for installations requiring both air intake and exhaust.

4"/6" Concentric Kit Applications

This concentric vent kit is designed for compatible applications requiring combustion air intake and flue gas exhaust through a single concentric system. The 4"/6" configuration provides a practical solution for installations where a concentric kit is appropriate.

InnoFlue® Concentric Venting

The InnoFlue® concentric kit is part of the polypropylene venting system and is designed to work with compatible InnoFlue® components. Always refer to the appliance manufacturer's installation instructions, applicable codes, and local requirements to confirm compatibility before selecting or installing a concentric vent kit.
