Gray Octo Hanger

Article number: ISCCH

The Gray Octo Hangers is modular and designed to extend the length of the InnoFlue® Octo Clamp. The hanger will extend additional support on all pipe fitting connections and where applicable throughout the vent system. Its robust design offers versatile connection orientations and provides a variety of installation options for any application.

  • Adds length and versatility to require vent system support requirements
  • Integrates with Centrotherm Octo Clamp in 2", 3" and 4" for customizable orientation and length
  • Installs quickly & easily, without glues, primers, or solvents
View all specifications

All media

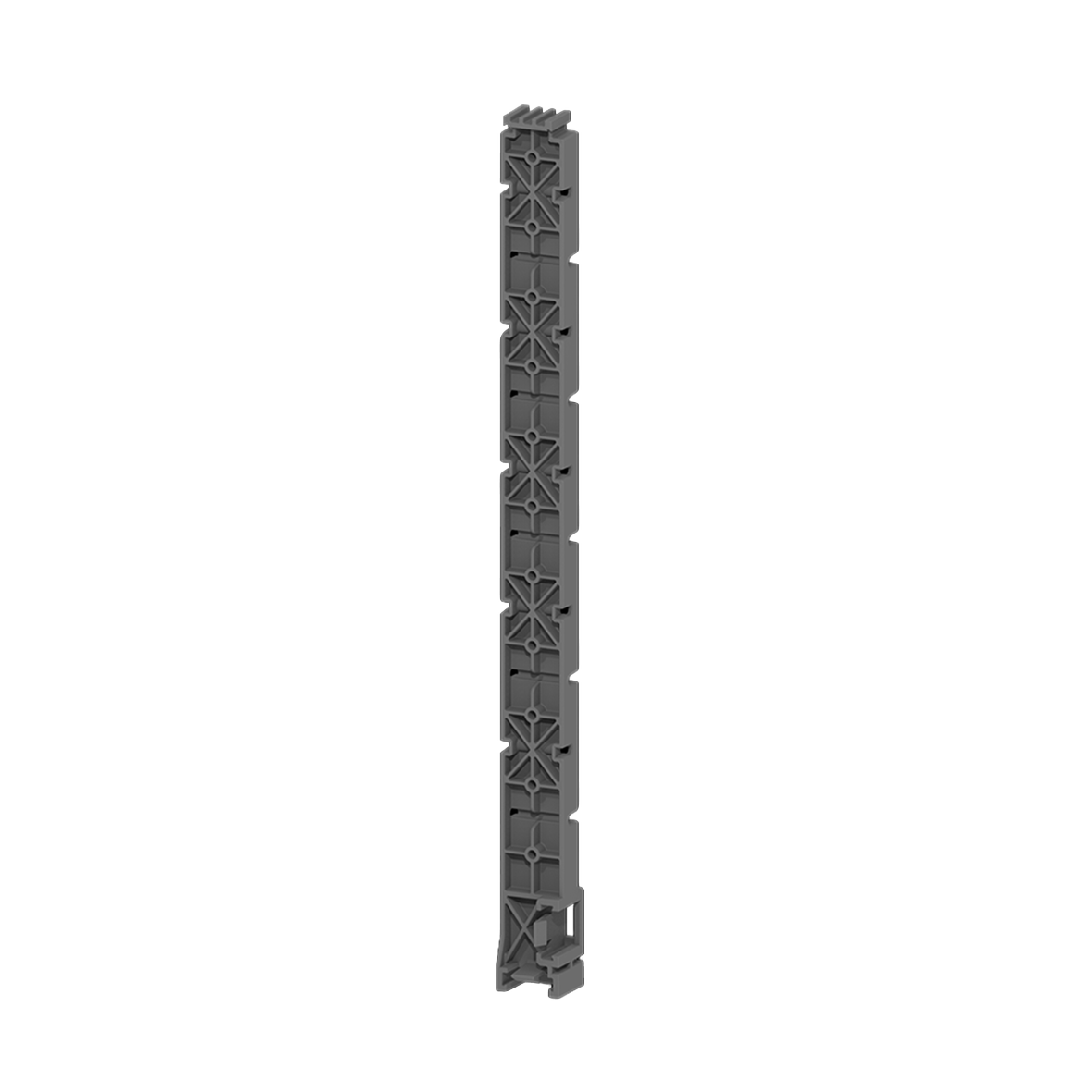

Octo Clamp hanger grey

Detailed information

Gray Octo Hanger for UL-1738 InnoFlue® Polypropylene Systems.

Specifications

General

Product Name
Gray Octo Hanger
Part number
250410009700
GTIN
0810017296866

Technical

Color
Gray
Material
PP

Dimensions

Length gross
317.5 mm / 12.5 inch
Height
17.78 mm / 0.7 inch
Width
25.4 mm / 1 inch
Net weight
0.047 kg / 0.1 lbs

Logistical

Intrastat
39269000
Gross weight
0.047 kg / 0.1 lbs
Packaging / Trade width
325 mm / 12.8 inch
Base unit packaging
Unpacked
Packaging / Trade length
320 mm / 12.6 inch
Packaging / Trade height
71 mm / 2.8 inch

Performance

CE string
-
